Marine Flanged Gate Valve 150LB

Marine Flanged Gate Valve 150LB

1. Standard:

Design Standard: API 600

Manufacture Standard: API 600

Face to Face Dimension: ASME B16.10

Flange End: ASME B16.5

Pressure Temperature Rating: ASTM B16.34

Pressure Test: API 598

2. Material:

Valve Body: CF3M

Valve Seat: CF3M

Valve Disc: CF3M

Valve Shaft: 316L

Valve Bonnet: CF3M

3. Detailed Information:

Nominal Diameter 1-1/2'
Nominal Pressure 150lb
Temperature 200
Media Water, Gas, Oil etc
Application Marine

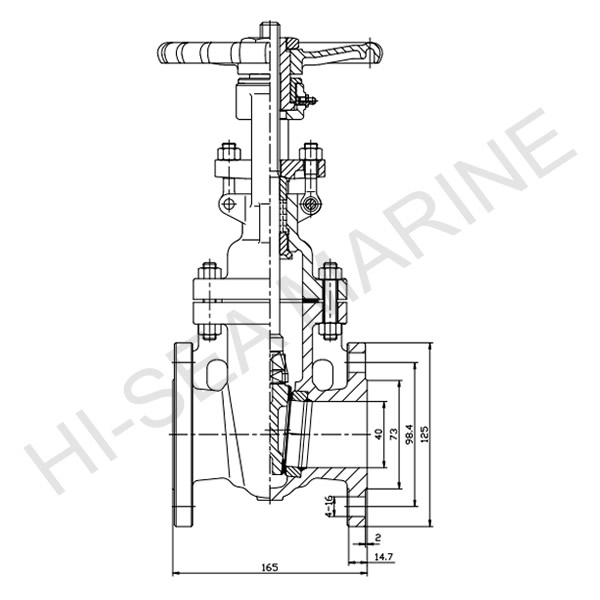

4. Marine Flanged Gate Valve 150LB Drawing:

Marine Flanged Gate Valve 150LB

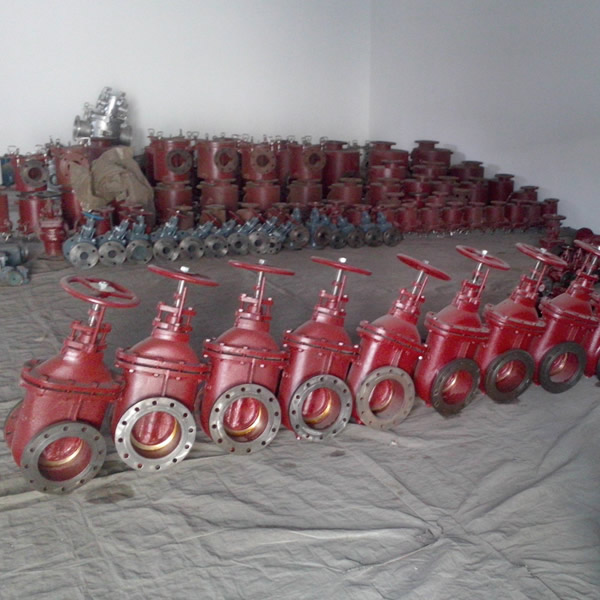

5. Marine Flanged Gate Valve 150LB Factory:
Marine Flanged Gate Valve 150LB
