JIS Marine Globe Valve

1. JIS Marine Globe Valve Applicable Scope:

The products are used for controlling the medium to open and close, preventing refluence in fuel oil piping, lubricating oil piping, water piping and steam piping at temperature 205 íŠ or less. Dimensions of flange are according to JIS B2220 flange dimensions of steel pipe.

2. Capability:

Nominal Pressure 5K (0.49 Mpa)
Seal Pressure 7.7K (0.761 Mpa)
Intensity Pressure 10.5K (1.03 Mpa)

3. Material:

Body: Cast Iron (FC200)

Bonnet: Cast Iron (FC200)

Packing Gland: Bronze (BC6) or Stainless Steel(2Cr13)

Stem: C3771BD (Brass) or SUS403

Seat and Disc: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)

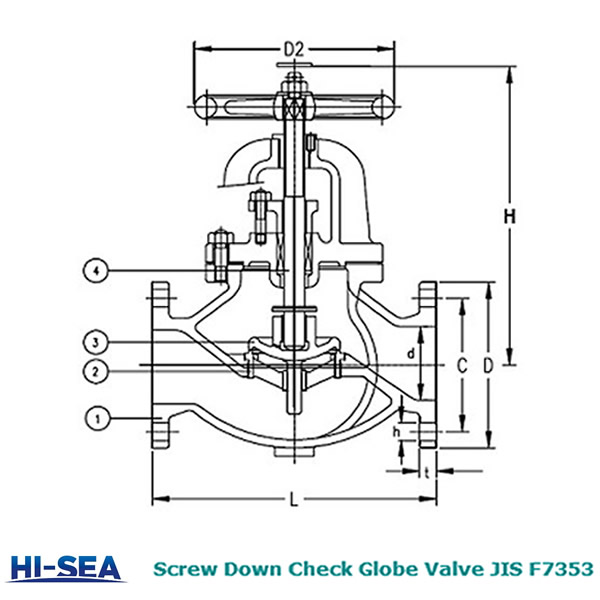

4. JIS Marine Globe Valve Main Data for Drawing (mm):

IMPA CODE Size L Flange Dia.(D) Pitch (C) No of Bolt Hole h t H D2 Weight
751101 50 210 130 105 4 15 16 270 160 14.8
751102 65 250 155 130 4 15 18 300 180 21.3
751103 80 280 180 145 4 19 18 310 180 27.6
751104 100 340 200 165 8 19 20 360 224 40.4
751105 125 410 235 200 8 19 20 390 250 57.9
751106 150 480 265 230 8 19 22 445 280 80.9
751107 200 570 320 280 8 23 24 530 315 139
751108 250 740 385 345 12 23 26 650 355 243
751109 300 840 430 390 12 23 28 740 400 377
751110 350 840 480 435 12 25 30 840 500 463
751111 400 1050 540 495 16 25 30 940 630 643
JIS Marine Globe Valve

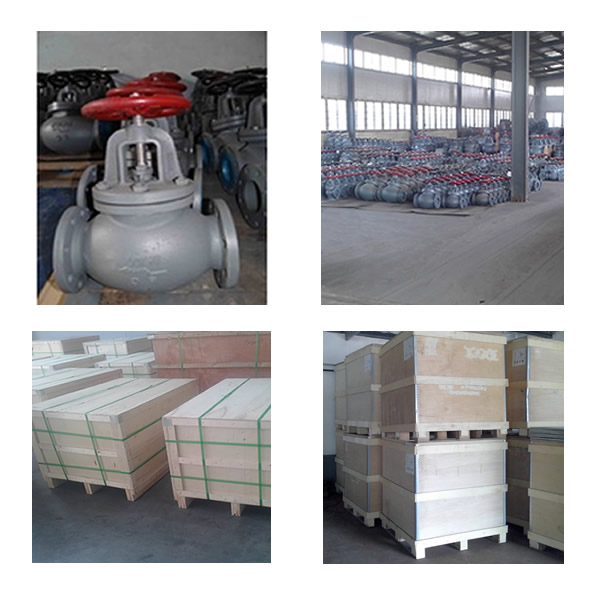

5. JIS Marine Globe Valve Factory:
