Marine Bronze Flanged Check Valve CBM1077-81

Marine Bronze Flanged Check Valve CBM1077-81:

1.Design standard:CBM1077-81.

2.End standard:CBM1020.

3.End type:Flange.

4.PN:1.6Mpa.

5.DN:15mm-40mm.

6.Main material:

  • Body/Bonnet:BC6;
  • Seat:BC6;
  • Disc:BC6.

7.Application:Sea water, fresh water, oil and steam piping.

8.Function:Such valves are used for Preventing refluence.

9.Fundamental dimensions of Marine Bronze Flanged Stop Valve CBM1077-81:

DN/mm

Flange connection dimension

Height

Structure length

D/mm

C/mm

n

d/mm

H/mm

L/mm

Type A

Type B

Type A

Type B

15

95

70

4

12

43

104

110

70

20

100

75

4

12

48

111

120

75

25

125

90

4

16

54

125

130

85

32

135

100

4

16

64

142

160

95

40

140

105

4

16

72

151

180

100

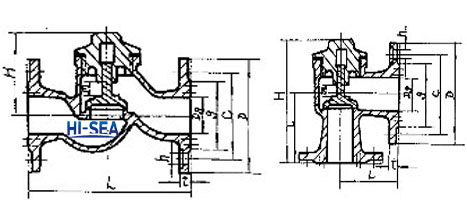

10.Drawing of Marine Bronze Flanged Stop Check Valve CBM1076-81:
