Marine Cast Bronze Straight Gobe Valve JIS F7301 5k

[Search Related Products]

Straight Globe Valve F7301 5k

Marine Cast Bronze Straight Gobe Valve JIS F7301 5k:

1.Test standard:JISF7400.

2.End standard:JISB2220.

3.End type:Flange.

4.PN:5k.

5.DN:15mm-65mm.

6.Main material:

  • Body/Bonnet:BC6/FCD450;
  • Seat:BC6/FCD450;
  • Stem:H62/SS410;
  • Disc:BC6/FCD450.

7.Application:Oil piping and water piping.

8.Function:Such valves are used for on-off duty and regulating the flow rate.

9.Specification of Marine Cast Bronze Straight Gobe Valve JIS F7301 5k;

IMPA Type DN Face to face/L(mm) Flange diam./D(mm) Flange pitch/C(mm) Flange hole/n*d(mm) Weight/kg
750121

F7301

5k

Globe

15 100 80 60 4X12 2.02
750122 20 110 85 65 4X12 2.86
750123 25 120 95 75 4X12 3.54
750124 32 140 115 90 4X15 5.00
750125 40 160 120 95 4X15 6.48
750126 50 210 130 105 4X15 11.70
750127 65 250 155 130 4X15 17.00

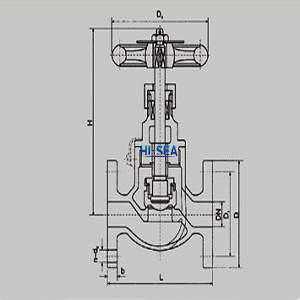

10.Drawing of Marine Cast Bronze Straight Gobe Valve JIS F7301 5k;

F7301

11.Certificate available:

Certificate01
