Marine Bronze Emergency Shut-Off Valve JIS F7399 5K

Marine Bronze Emergency Shut-Off Valve JIS F7399 5K

1. Brief Introduction:

It is fuel oil tank emergency shut-off valve. It can be operated by manual lever or pneumatic way.

2. Standard:

Design Standard: JIS F7399-1996

Test Standard: JIS 7400-1996

Flange Size as per JIS B2220-5K

3. Material:

Body, Bonnet, Seat, Disc: Bronze (BC6)

Stem: Brass (C3771BD)

Operation Lever: Stainless Steel

Handwheel: Cast Iron (FC200)

Gasket: NON-asbestos

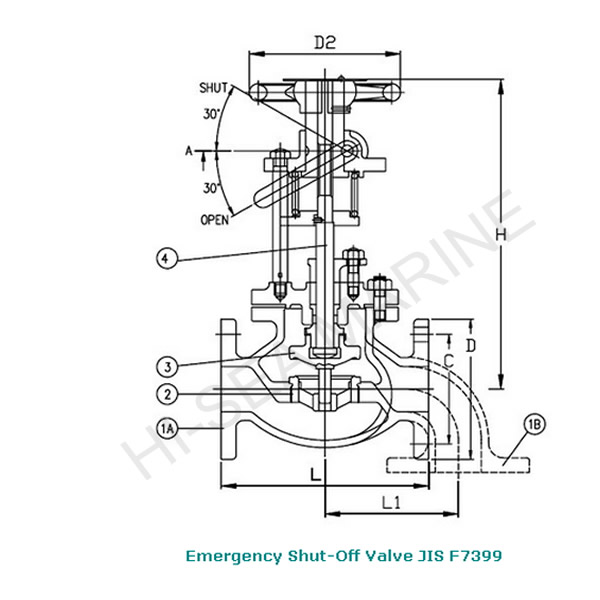

4. Main Data for Marine Bronze Emergency Shut-Off Valve JIS F7399 5K:

DN d L D C Bolt Hole NO. Bolt Hole Diameter Flange thickness H D2
5K15 15 100 80 60 4 12 10 265 120
5K20 20 110 85 65 4 12 10 265 120
5K25 25 120 95 75 4 12 10 265 120
5K40 40 160 120 95 4 15 12 310 140
5K50 50 210 130 105 4 15 14 335 160
5K65 65 250 155 130 4 15 14 395 180
Marine Bronze Emergency Shut-Off Valve JIS F7399 5K

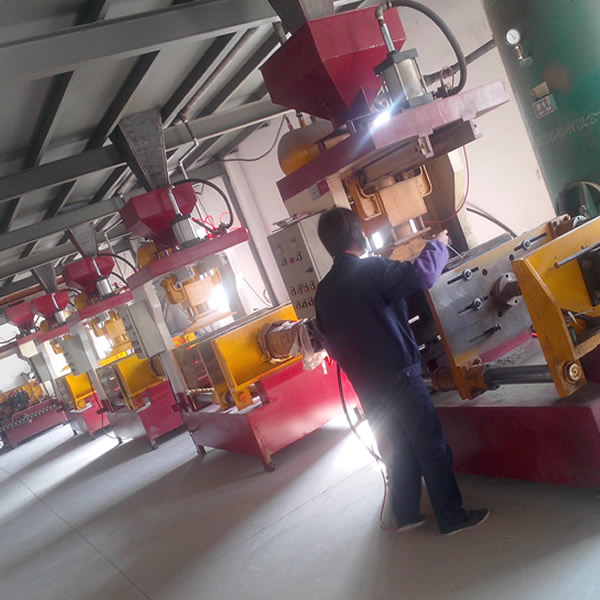

5. Marine Bronze Emergency Shut-Off Valve JIS F7399 5K Factory:

Marine Bronze Emergency Shut-Off Valve JIS F7399 5K

Marine Bronze Emergency Shut-Off Valve JIS F7399 5K Package:

Marine Bronze Emergency Shut-Off Valve JIS F7399 5K
