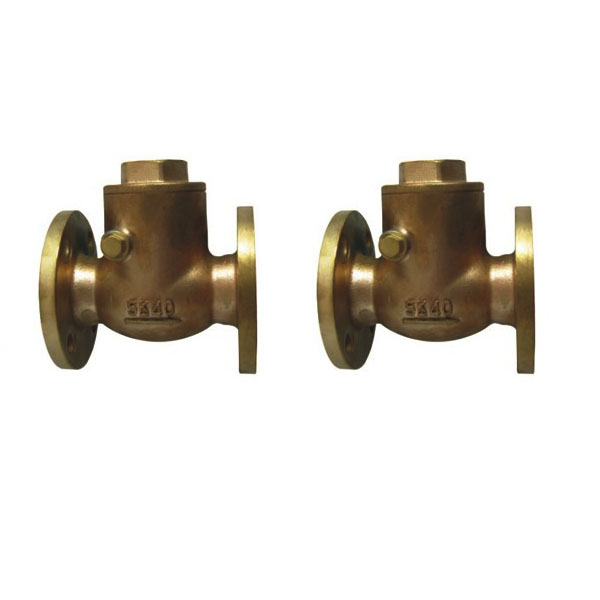

Marine Bronze Swing Check Valve JIS F7371

[Search Related Products]

Marine Bronze Swing Check Valve JIS F7371 5K

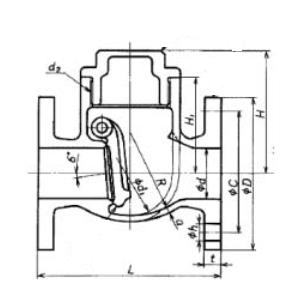

Code Size Face to Face (L) Flange diam. (D) Pitch (C) Hole (nxd) Weight
(mm) (mm) (mm) (mm) (mm) (kgs)
751401 25 110 95 75 4XD12 2.24
751402 32 130 115 90 4XD15 3.07
751403 40 140 120 95 4XD12 4.34
Marine Bronze Swing Check Valve JIS F7371

Bronze Swing Check Valve

1. Design standard: JIS F 7371-1996

2. Test: JIS F 7400-1996

3. Pressure: 5K

4. Material:

(1). Body: BC6

(2).Bonnet: BC6

(3). Disc: BC6
