Marine Bronze Globe Valve JIS F7303 16K[Search Related Products]

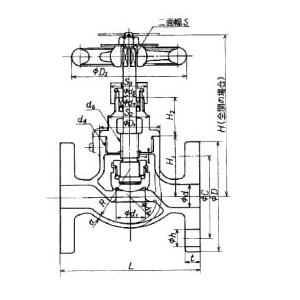

Marine Bronze Globe Valve JIS F7303 16K
| Code | Size | Face to Face (L) | Flange diam. (D) | Pitch (C) | Hole (nxd) | Weight |
| กก | (mm) | (mm) | (mm) | (mm) | (mm) | (kgs) |
| 750141 | 15 | 110 | 95 | 70 | 4XD15 | 2.76 |
| 750142 | 20 | 120 | 100 | 75 | 4XD15 | 3.72 |
| 750143 | 25 | 130 | 125 | 90 | 4XD19 | 5.20 |
| 750144 | 32 | 160 | 135 | 100 | 4XD19 | 6.91 |
| 750145 | 40 | 180 | 140 | 105 | 4XD19 | 8.43 |
