Marine Cast Iron Screw Down Check Globe Valve JIS F7353 5K

1. Marine Cast Iron Screw Down Check Globe Valve Brief Introduction:

Screw down check globe valve can be abbreviated to SDNR valve. The valve is used for controlling the medium to open and close, preventing refluence in piping.

2. Standard:

Design Standard: JIS F7353-1996

Test Standard: JIS 7400-1996

Flange size as per JIS B2220-5K

3. Test Pressure:

Hydraulic Test Pressure Body-1.05 Mpa, Seat-0.77 Mpa

4. Material:

Part Name

Material Name

Material Mark

Body

Cast Iron

FC200

Bonnet

Cast Iron

FC200

Packing Gland

Bronze or Stainless Steel

BC6 or 2Cr13

Stem

Brass or Stainless Steel

C3771BD or SUS403

Seat

Bronze or Stainless Steel

BC6 or 2Cr13/SCS2

Disc

Bronze or Stainless Steel

BC6 or 2Cr13/SCS2

Gasket

Non-asbestos

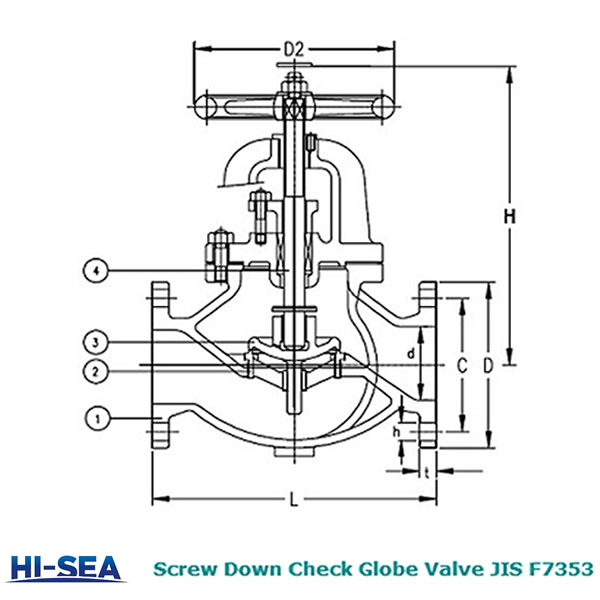

5. Marine Cast Iron Screw Down Check Globe Valve JIS F7353 5K Main Date for Drawing (mm):

IMPA CODE Size L Flange Dia.(D) Pitch (C) No of Bolt Hole h t H D2 Weight
751101 50 210 130 105 4 15 16 270 160 14.8
751102 65 250 155 130 4 15 18 300 180 21.3
751103 80 280 180 145 4 19 18 310 180 27.6
751104 100 340 200 165 8 19 20 360 224 40.4
751105 125 410 235 200 8 19 20 390 250 57.9
751106 150 480 265 230 8 19 22 445 280 80.9
751107 200 570 320 280 8 23 24 530 315 139
751108 250 740 385 345 12 23 26 650 355 243
751109 300 840 430 390 12 23 28 740 400 377
751110 350 840 480 435 12 25 30 840 500 463
751111 400 1050 540 495 16 25 30 940 630 643

Marine Cast Iron Screw Down Check Globe Valve JIS F7353 5K

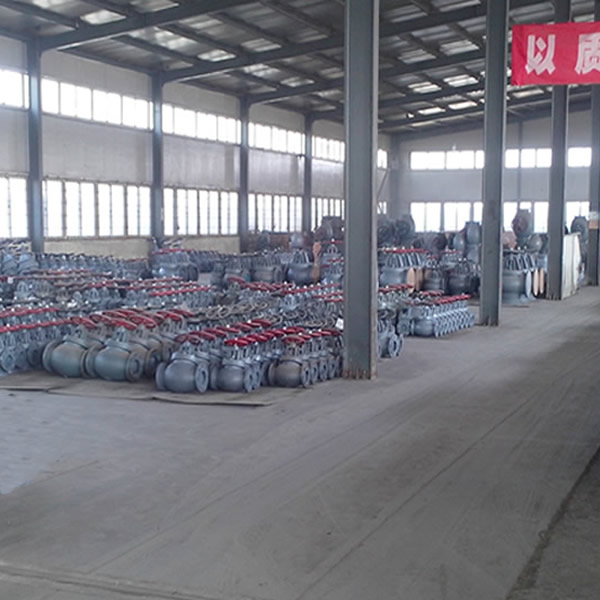

Marine Cast Iron Screw Down Check Globe Valve JIS F7353 5K Factory:
