Marine Cast Iron Angle Valve JIS F7308 10K

[Search Related Products]

Marine Cast Iron Angle Valve JIS F7308 10K

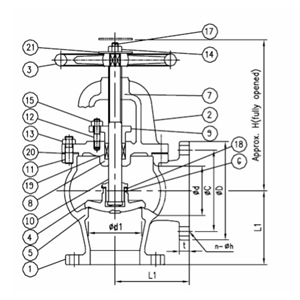

Code Size L1 Flange diam. (D) Pitch (C) Hole (nxd) t H Weight
(mm) (mm) (mm) (mm) (mm) (mm) (mm) (kgs)
750246 50 120 155 120 4-D19 20 255 18.20
750247 65 130 175 140 4-D19 22 270 25.40
750248 80 140 185 150 8-D19 22 275 27.40
750249 100 160 210 175 8-D19 24 315 40.60
750250 125 180 250 210 8-D23 24 360 69.90
750251 150 205 280 240 8-D23 26 405 81.00
750252 200 230 330 290 12-D23 26 475 125.00
750253 250 290 400 322 12-D25 30 570 211.00
750254 300 320 445 400 16-D25 32 645 293.00
750255 350 360 490 445 16-D25 34 710 386.00
750256 400 420 560 510 16-D27 36 790 544.00
1. Design standard: JIS F 7308-1996
2. Test standard: JIS 7400-1996
3. Hydraulic test pressure:
(1). DN 200 or less:
Body-2.1Mpa, Seat-1.54Mpa
(2). DN250 or more:
Body-1.5Mpa, Seat-1.1Mpa
4. Material: cast iron(FC200)

5. About us: we have nearly 20 years experience on valves exporting. We are a professional Chinese supplier and have own factories to meet customized production.
