Marine Cast Steel SDNR Globe Valve JIS F7311C 5K

[Search Related Products]

7311c

Marine Cast Steel Screw Down Check Globe Valve JIS F7311C 5K :

1.Test standard:JISF7400.

2.End standard:JISB2220.

3.End type;Flange.

4.PN:5k.

5.DN:50mm-300mm.

6.Main material:

  • Body/Bonnet::ZG230-450;
  • Seat:SS410/BC6;
  • Stem:SS410/H62;
  • Disc:SS410/BC6.

7.Application:Oil piping,water piping and steam piping.

8.Function:Such valves are used for on-off duty and regulating the flow rate.

9.Specification of Marine Cast Steel Screw Down Check Globe Valve JIS F7311C 5K :

Size L Flange diam. (D) Pitch (C) Hole (nxd) t H Weight
(mm) (mm) (mm) (mm) (mm) (mm) (mm) (kgs)
50 210 130 105 4-D15 16 270 14.80
65 250 155 130 4-D15 18 300 21.30
80 280 180 145 4-D19 18 310 27.60
100 340 200 165 8-D19 20 360 40.40
125 410 235 200 8-D19 20 390 57.90
150 480 265 230 8-D19 22 445 80.90
200 570 320 280 8-D23 24 530 139.00
250 740 385 345 12-D23 26 650 243.00
300 840 430 390 12-D23 28 740 320.00

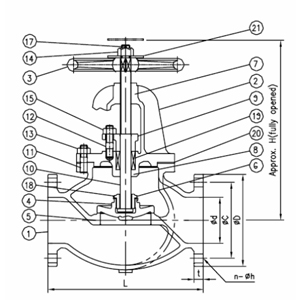

10.Drawing of Marine Cast Steel Screw Down Check Globe Valve JIS F7311C 5K :

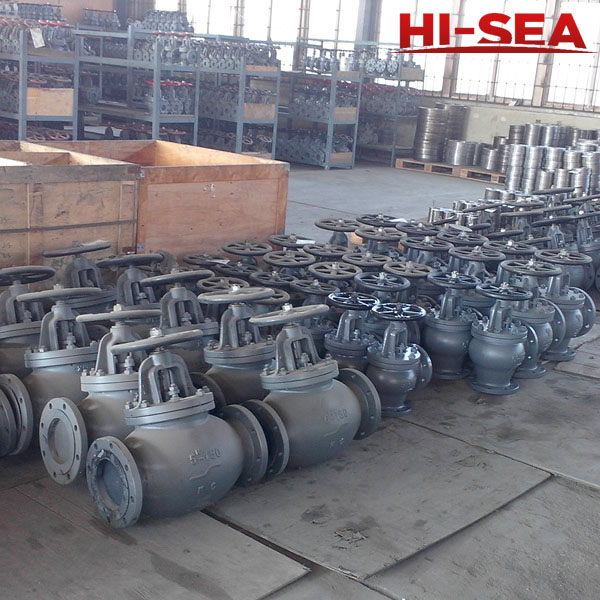

11.Marine Cast Steel Screw Down Check Globe Valve JIS F7311C 5K factory:
