Marine Bronze Male Screw Thread Drain Cock GB/T599-1996

Marine Bronze Male Screw Thread Drain Cock GB/T599-1996:

1.Design standard:GB600-82.

2.End standard:CB56-80.

3.End type:Thread.

4.PN:0.1/1.0/1.6/2.5Mpa.

5.DN:6mm-32mm.

6.Main material:

  • Body/Bonnet:BC6;
  • Seat:BC6;
  • Stem:BRASS;
  • Disc:BC6.

7.Application:Sea water piping,fesh water piping and oil piping.

8.Function:Such cocks are used for on-off duty.

9.Fundamental dimensions of Marine Bronze Male Screw Thread Drain Cock GB/T599-1996:

Chart 1 Fundamental dimensions of type A:

PN

DN

Structure Dimension

Thread Connection

Handle

Thickness

Weight

MPa

mm

L

L1

Hi

H

D

Di

D2

l

11

12

Lo

6

kg

2.5กก

6

60

25

20

60

M22กม1 5

19 8

10

14

3

3

100

5

0.40

10

69

30

27

72

M27กม1 5

24.8

14

16

3

3

110

5

0.63

15

87

41

37

92

M36กม2

33.0

22

22

5

3

115

5

0.94

1.6

20

92

43

40

99

M36X2

33.0

24

20

3

2

125

4

1.43

25

103

50

42

108

M42กม2

39.0

29

21

3

2

140

4

1.69

1.0

32

1 19

56

49

120

M48กม2

45 0

36

21

3

2

160

5

3.21

Chart 2 Fundamental dimensions of type B:

PN

DN

Structure Dimension

Thread Connection

Thickness

Handle

Hex. Subtense

Locking hole

Weight

MPa

mm

L

L1

Hi

H

D

t

Lo

S

D

kg

0.1กก

10

58

14

21

58

M22กม1.5

3

80

0.58

0.58

0.58

15

67

18

26

65

M27กม2

3

85

0.88

0.88

0.88

20

81

20

32

77

M33กม2

3

100

1.18

1.18

1.18

25

98

22

37

90

M42กม2

3

120

1.78

1.78

1.78

10.Drawing of Marine Bronze Male Screw Thread Drain Cock GB/T599-1996:

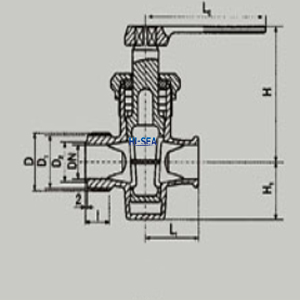

type A:

Marine Bronze Male Screw Thread Drain Cock GB/T599-1996

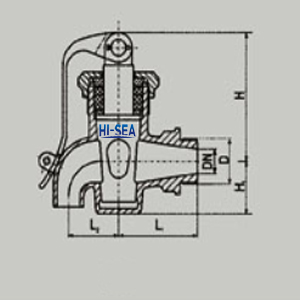

Type B:

Marine Bronze Male Screw Thread Drain Cock GB/T599-1996
