Marine Self-closing Drain Valve CB/T601-1992

[Search Related Products]

Marine Self-closing Drain Valve CB/T601-1992

Marine Self-closing Drain Valve CB/T601-1992:

1.Design standard:CB/T601-1992.

2.End standard:GB/T2501&GB/T569.

3.End type:Flange.

4.PN:0.25Mpa.

5.DN:15mm-40mm.

6.Main material:

  • Body/Bonnet:BC6;
  • Seat:BC6;
  • Stem:BRASS;
  • Disc:BC6.

7.Application:Sea water piping,fresh water piping and oil piping.

8.Fundamental dimensions of Marine Self-closing Drain Valve CB/T601-1992:

Chart 1 Fundamental dimensions of type A:

DN

Structure Dimension

Flange

Thread Joint

Lift Range

Weight

mm

L

L1

L2

H

H1

D

D1

D2

b

f

n

d

Th.

d1

d2

m

kg

25

136

183

130

168

62

6

105

73

36

12

1

4

13

M422

39

29

10

3.1

40

170

203

140

195

80

7

125

93

74

13

1

6

15

-

-

-

13

6.9

Chart 2 Fundamental dimensions of type AS:

DN

Structure Dimension

Flange

Thread Joint

Lift Range

Weight

mm

L

L1

L2

H

Hi

D

D1

D2

b

f

n

d

Th

d1

d2

m

kg

15

130

165

120

146

46

4

80

55

40

12

2

4

11

M302

27

19

7

1.75

125

160

183

130

168

62

6

100

75

60

14

2

4

11

M422

39

29

10

3.64

140

200

203

140

195

80

7

130

100

80

16

3

4

14

13

6.93

9.Drawing of Marine Self-closing Drain Valve CB/T601-1992:

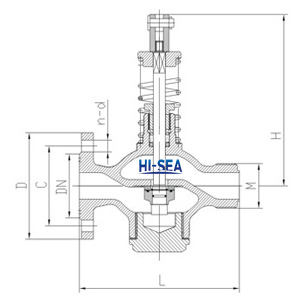

Type A:

Marine Self-closing Drain Valve CB/T601-1992

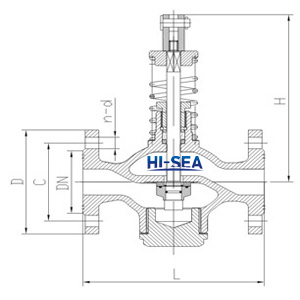

Type AS:

Marine Self-closing Drain Valve CB/T601-1992

10.Certificate available:

Marine Self-closing Drain Valve CB/T601-1992
