Marine Pressure Meter

Marine Pressure Meter


1. Function: Measure pressure of gas and liguid medium etc.

2. Application: Be used in ship and industrial field.

3. Working Using metal spring elements as core.

4. Measuring Range: 0-60 Mpa

5. Accuracy: 2.5 Grade

6. Material: Iron Alloy, Al-Alloy, Copper Alloy, Stainless Steel

Marine Pressure Meter Mounting Dimension

D

D1

A

B

d2

d0

d1

60

ŽÁ85

64

48

ŽÁ4.5

72

ŽÁ5

75

ŽÁ98

-

-

-

88

ŽÁ4.5

100

ŽÁ130

102

80

ŽÁ5.5

118

ŽÁ6

150

ŽÁ180

-

-

-

165

ŽÁ6

200

ŽÁ230

-

-

-

215

ŽÁ6

Marine Pressure Meter Connection Screw Thread Dimension

Dial Nominal Diameter mm

Connection Size

d

L mm

d1 mm

60

M10X1

10

ŽÁ4.5

75

M14X1.5

14

ŽÁ5

100

G3/8 inch

16

150

M20X1.5 G1/2 inch

20

ŽÁ6

200

Remark: When one have special requirements to the connection screw thread, please contact us.

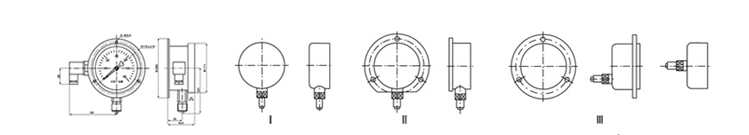

7. Drawing of Marine Pressure Meter:


Marine Pressure Meter

8. Certificate Available:

Marine Pressure Meter
