Marine Male Screw Thread Bronze Throttle Valve CB315-1993

Marine Male Screw Thread Bronze Throttle Valve CB315-1993:

1.Design standard:CB315-1993.

2.End standard:CB56-80.

3.End type:Thread.

4.PN:4.0Mpa.

5.DN:10mm-25mm.

6.Main material:

  • Body/Bonnet:ZCuAl9Mn2;
  • Stem:QAl9-2;
  • Disc:QAl9-2.

7.Application:Water piping,oil piping and steam piping.

8.Function:Such valves are used for regulating the flow rate.

9.Fundamental dimensions of Marine Male Screw Thread Bronze Throttle Valve CB315-1993:

DN

Structure dimension

Thickness

Screw connection dimension

Hand wheel

Lift range

Weight

mm

L/mm

H1/mm

H/mm

/mm

D/mm

l/mm

d1/mm

d2/mm

D0/mm

S/mm

m

kg

10

53

49

139

6

M27x1.5

16

24.8

14

80

8

10

1.18

15

58

58

148

M36x2

22

33.0

22

80

8

13

1.40

20

64

64

156

M39x2

23

36.0

25

100

9

15

1.92

25

72

72

176

M48x2

26

45.0

32

120

11

18

2.67

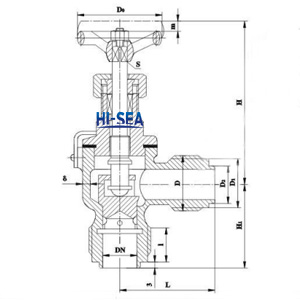

10.Drawing of Marine Male Screw Thread Bronze Throttle Valve CB315-1993:

Marine Male Screw Thread Bronze Throttle Valve CB315-1993

11.Certificate available:

Marine Male Screw Thread Bronze Throttle Valve CB315-1993
