Marine Cast Bronze Straight Globe Valve JIS F7303 16k

[Search Related Products]

Straight Globe Valve F7303 16k

Marine Cast Bronze Straight Globe Valve JIS F7303 16k:

1.Test standard:JISF7400.

2.End standard:JISB2220.

3.End type:Flange.

4.PN:16k.

5.DN:15mm-40mm.

6.Main material:

  • Body/Bonnet:BC6/FCD450;
  • Seat:BC6/SS410;
  • Stem:H62/SS410;
  • Disc:BC6/SS410.

7.Application:Oil piping and water piping.

8.Function:Such valves are used for on-off duty and regulating the flow rate.

9.Specification of Marine Cast Bronze Straight Globe Valve JIS F7303 16k:

IMPA Type DN Face to face/L(mm) Flange diam./D(mm) Flange pitch/C(mm) Flange hole/n*d(mm) Weight/kg
750141

F7303

16k

Globe

15 110 95 70 4X¦µ15 2.76
750142 20 120 100 75 4X¦µ15 3.72
750143 25 130 125 90 4X¦µ19 5.20
750144 32 160 135 100 4x¦µ15 6.91
750145 40 180 140 105 4x¦µ19 8.43

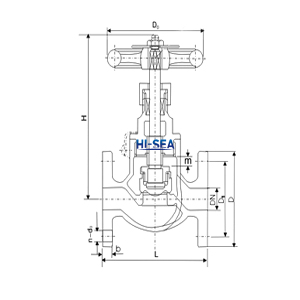

10.Drawing of Marine Cast Bronze Straight Globe Valve JIS F7303 16k:

7303

11.Certificate available:

Certificate
