Marine Cast Iron Straight Globe Valve JIS F7307 10k

[Search Related Products]

Straight Globe Valve F7307 10k

Marine Cast Iron Straight Globe Valve JIS F7307 10k:

1.Test standard:JISF7400.

2.End standard:JISB2220.

3.End type:Flange.

4.PN:10k.

5.DN.50mm-300mm.

6.Main material:

  • Body/Bonnet:FC-HT200;
  • Seat:SS410/BC6;
  • Stem:SS410/H62;
  • Disc:SS410/BC6.

7.Aplication:Oil piping,water piping and steam piping.

8.Function:Such valves are used fou on-off duty and regulating the flow rate.

9.Specification of Marine Cast Iron Straight Globe Valve JIS F7307 10k:

IMPA Type DN Face to face/L(mm) Flange diam./D(mm) Flange pitch/C(mm) Flange hole Weight/kg
750231

F7307

10k

Globe

50 220 155 120 4x¦µ19 19.90
750232 65 270 175 140 4x¦µ19 28.70
750233 80 300 185 150 8x¦µ19 32.40
750234 100 350 210 175 8x¦µ19 48.70
750235 125 420 250 210 8x¦µ23 73.10
750236 150 490 280 240 8x¦µ23 104.00
750237 200 570 330 290 12x¦µ23 162.00
750238 250 740 400 355 12x¦µ25 304.00
750239 300 840 445 400 16x¦µ25 458.00

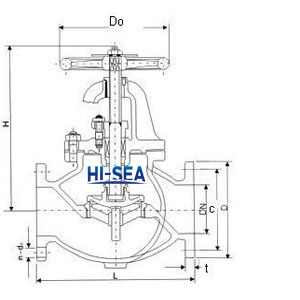

10.Drawing of Marine Cast Iron Straight Globe Valve JIS F7307 10k:

Straight Globe Valve F7307 10k

11.Certificate available:

Certificate
