Marine Bronze Low Pressure Male Screw Thread Check Valve GB1952-1980

Marine Bronze Low Pressure Male Screw Thread Check Valve GB1952-1980:

1.Design standard:GB600-82.

2.End standard:CB56-80.

3.End type:Thread.

4.PN:1.6Mpa.

5.DN:15mm-32mm.

6.Main material:

  • Body/Bonnet:BC6;
  • Seat:BC6;
  • Disc:BC6.

7.Application:Sea water piping,fresh water piping,oil piping and steam piping.

8.Function:Such valves are used for preventing refluence.

9.Fundamental dimensions of Marine Bronze Low Pressure Male Screw Thread Check Valve GB1952-1980:

DN

Structure dimension

Thread jiont

Lift

range

Weight/kg

L/mm

H/mm

H1/mm

D/mm

D1/mm

D2/mm

l0/mm

l1 /mm

mm

Type A

Type B

Type A

Type B

Type B

m

Type A

Type B

15

95

42

43

34

37

M30x2

27

19

19

3

5

0.495

0.415

20

110

47

48

36

42

M36x2

33

24

19

3

6

0.600

0.490

25

125

53

54

40

48

M42x2

39

29

20

3

7

0.945

0.635

32

145

58

64

47

56

M48x2

45

36

20

3

9

1.790

1.550

10.Drawing of Marine Bronze Low Pressure Male Screw Thread Check Valve GB1952-1980:

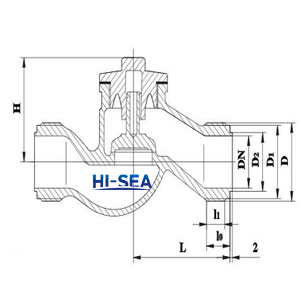

Type A:

Marine Bronze Low Pressure Male Screw Thread Check Valve GB1952-1980

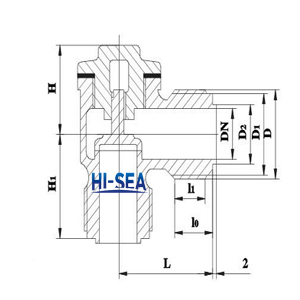

Type B:

Marine Bronze Low Pressure Male Screw Thread Check Valve GB1952-1980

11.Certificate available:

Marine Bronze Low Pressure Male Screw Thread Check Valve GB1952-1980
