Marine Pressure Gauge Valve

Marine Pressure Gauge Valve

1. Standard: CB312-1977.

2. Thread End Standard: CB56-80

3. Type: B Type

4. PN: 10.0/16.0Mpa.

5. DN: 6mm.

6. Main material:

• Body/Bonnet:ZCuSn16Si4;
• Seat:ZCuSn16Si4;
• Stem:2Cr13;
• Disc:QAl9-2.

7. Specification:

Type	PN (Mpa)	DN (mm)	Weight (kg)
B	10.0	6	0.60
B	16.0	6	To be confirmed

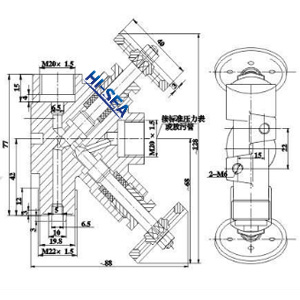

Drawing of Marine Pressure Gauge Valve:

8. Picture of Marine Pressure Gauge Valve:
