Marine Bronze Suction Sea Valve GB/T2030-1980

Marine Bronze Suction Sea Valve GB/T2030-1980:

1.Design standard:GB600-65.

2.End standard:GB569-65.

3.End type:Flange.

4.PN:1.6Mpa.

5.DN:80mm-400mm.

6.Main material:

  • Body/Bonnet:BC6;
  • Seat:BC6;
  • Stem:BS;
  • Disc:BC6.

7.Application:Sea water and fresh water piping.

8.Fundamental dimensions of Marine Bronze Suction Sea Valve GB2030-1980:

DN/mm

Structure dimension

Flange dimension

Bolt

Lift

range /m

Weight

kg

L /mm

H /mm

D/mm

D1/mm

D2/mm

b/mm

D0 /mm

n

Th.

80

125

360

170

138

118

14

15

8

M14

24

19.0

100

135

415

190

158

138

14

15

8

M14

30

23.6

125

160

470

215

183

164

14

15

10

M14

40

31.2

150

175

506

240

208

190

14

15

12

M14

48

49.8

200

220

595

295

264

247

15

15

12

M14

60

70.0

250

260

698

365

327

306

16

17

14

M16

70

111.0

300

300

780

430

386

360

19

22

14

M20

78

170.3

350

320

910

480

436

410

20

22

16

M20

100

229.0

400

380

960

530

486

460

21

22

16

M20

110

299.0

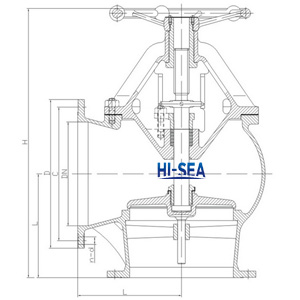

9.Drawing of Marine Bronze Suction Sea Valve GB2030-1980:
