Marine Cast Steel Globe Valve JIS F7317 40k

[Search Related Products]

7317

Marine Cast Steel Globe Valve JIS F7317 40k:

1.Test standard:JISF7400.

2.End standard:JISB2220.

3.End type:Flange.

4.PN:40k.

5.DN:32mm-150mm.

6.Main material:

  • Body/Bonnet:FS;
  • Seat:SS410;
  • Stem:SS410;
  • Disc:SS410.

7.Application:Air piping.

8.Function:Such valves are used for on-off duty and regulating the flow rate.

9.Specification of Marine Cast Steel Globe Valve JIS F7317 40k:

IMPA

DN/mm

Face to face/L(mm)

Flange diam./D(mm)

Flange pitch/Cmm)

Flange hole/n*d(mm)

Weight/kg

750471

32

229

140

105

4x19

25.40

750472

40

241

160

120

4x23

30.20

750473

50

292

165

130

8x19

41.00

750474

65

330

200

160

8x23

62.30

750475

80

356

210

170

8x23

79.00

750476

100

432

250

205

8x25

140.00

750477

125

508

300

250

8x27

197.00

750478

150

559

355

295

12x33

298.00

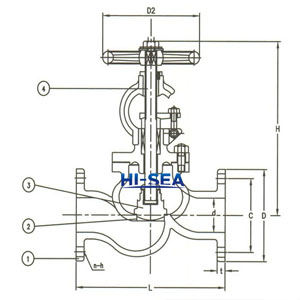

10.Drawing of Marine Cast Steel Globe Valve JIS F7317 40k

7317cad

11.Certificate available:

Certificate01
