Marine Cast Bronze Globe Hose Valve JIS F7334A 5k/10k

[Search Related Products]
7334A

Marine Cast Bronze Globe Hose Valves JIS F7334A 5k/10k:

1. Test standard: JISF7400.

2.End standard:JISB2220.

3.End type:Flange.

4.PN:5k/10k.

5.DN:

  • 5k:15mm-50mm;
  • 10k:15mm-65mm.

6.Main material:

  • Boddy/Bonnet:BC6;
  • Seat:BC6;
  • Stem:BRASS;
  • Disc:BC6.

7.Application:Water piping.

8.Function:Such valves are used for fire control.

9.Specification of Marine Cast Bronze Globe Hose Valves JIS F7334A 5k/10k:

Marine Cast Bronze Globe Hose Valves JIS F7334A 5k:

DN/mm

Flange diam./D(mm)

Flange pitch/C(mm)

Flange hole/n*d(mm)

Weight/kg

15

80

60

4x¦µ12

2.51

25

95

75

4x¦µ12

3.55

40

120

95

4x¦µ15

6.26

50

130

105

4x¦µ15

12.90

Marine Cast Bronze Globe Hose Valves JIS F7334A 10k:

DN/mm

Flange diam./D(mm)

Flange pitch/C(mm)

Flange hole/n*d(mm)

Weight/kg

15

95

70

4x¦µ15

2.76

25

125

90

4x¦µ19

4.15

40

140

105

4x¦µ19

8.43

50

155

120

4x¦µ19

15.40

65

175

140

4x¦µ19

27.80

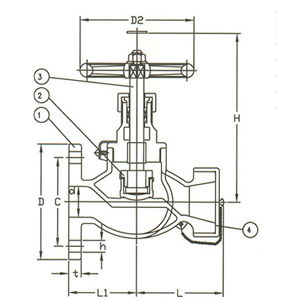

10.Specification of Marine Cast Bronze Globe Hose Valves JIS F7334A 5k/10k:

11.Certificate available:

Certificate01
