Marine Air Vent Head CB/T3594-1994 Type C/CS

[Search Related Products]

Marine Air Vent Head CB/T3594-1994 Type C/CS

Marine Air Vent Head CB/T3594-1994 Type C/CS:

1.Design standard:CB/T3594-1994.

2.End standard:GB/T2501&GB/T569.

3.End type:Flange.

4.DN:50mm-100mm.

5.Main material:

  • Body/Bonnet:FC/FCD;
  • Disc:SS304.

6.Application:Bunker,water cabin air tube top.

7.Function:Such air vent heads are used for pressure balance.

8.Fundamental dimensions of Marine Air Vent Head CB/T3594-1994 Type C/CS:

DN/mm

Structure dimension

Flange connection dimension

Weight/kg

H

H1

D

R

D2

D1

b

n

d0

Cast Iron

Cast steel

50

280

80

60

60

6

135

103

15

6

15

4.10

5.10

140

110

16

4

14

4.54

5.32

80

310

90

80

7.5

170

138

14

8

15

9.01

9.91

190

150

18

4

18

9.20

10.11

100

270

103

100

8

190

158

14

8

15

12.90

13.81

210

170

18

4

18

13.11

14.29

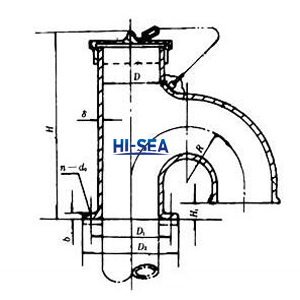

9.Drawing of Marine Air Vent Head CB/T3594-1994 Type C/CS:

Marine Air Vent Head CB/T3594-1994 Type C/CS

10.Certificate available:

Marine Air Vent Head CB/T3594-1994 Type C/CS
