Marine Glass Type Level Gauge

Marine Glass Type Level Gauge

1. Brief Introduction:

Marine glass type level gauge is called flat glass double colour level gauge.

It can be indicated clearly because of the double colour indication of the level gauge. And because of good functioning of the lower self-closing valve, when required, the liquid chambers can be cleaned without drain of the tank.

2. Medium:

Water

Lubricating Oil

Fuel Oil Flash Point Over 65íŠ

3. Technical Specification:

Working Pressure: 0.2 Mpa

Test Pressure: 0.5 Mpa

Valve Body: Q235A

With Self Closing Valves

4. Detailed Information: :

Type

A, B, C, D

Length

245-6500 mm

Connection

Welding Type, Flange Type

Features

Easy to Operate, Safe for Use

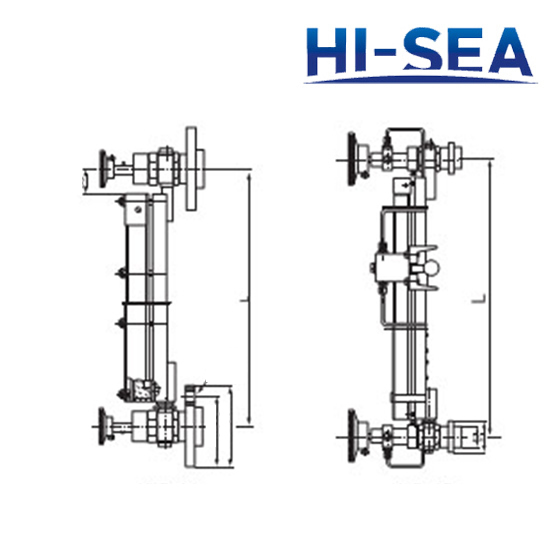

Marine Glass Type Level Gauge Drawing:

Marine Glass Type Level Gauge
