Marine Cast Steel Quick Closing Globe Valve GB/T5744-1993

Marine Cast Steel Quick Closing Globe Valve GB/T5744-1993:

1.Design standard:GB/T11689.

2.End standard:GB/T2501&GB/T569.

3.End type:Flange.

4.PN:0.25Mpa.

5.DN:20mm-150mm.

6.Main material:

  • Body/Bonnet:ZG230-450;
  • Seat:SS410/BC6;
  • Stem:SS410/BRASS;
  • Disc:SS410/BC6.

7.Application:Oil piping.

8.Function:Such valves are used for on-off duty.

9.Fundamental dimensions of Marine Cast Steel Quick Closing Globe Valve GB/T5744-1993:

Chart 1 Fundamental dimensions of type AS/AQ/BS/BQ:

DN

L

H

L1

L2

Thickness

Flange

Bont

Hand whee

Lift
Range

Cylin der
Volume

Weight(kg)

(mm)

AS
AQ

BS
BQ

AS

AQ¡¡

BS

BQ¡¡

t

D

Di

D2

do

b

n

Th

Do

S

m

V(cm3)

AS

AQ

BS

BQ

20

150

95

240

320

143

44

6

95

68

48

13

1 1

4

M12

80

8

7

27

5.8

6.7

6.2

7.1

25

160

100

242

325

143

44

6

105

73

56

13

12

4

M12

80

8

9

27

6.6

7.5

6.8

7.7

32

180

105

245

330

143

44

6

1 15

83

64

15

13

6

M14

100

9

9

27

7.1

8.0

7.0

7.9

40

200

115

274

365

143

48

6

125

93

74

15

13

6

M14

120

1 1

12

27

10.1

11.0

9.6

10.5

50

230

125

283

381

143

49

7

135

103

84

15

13

6

M14

140

12

15

27

11 6

12 5

12.6

13.5

65

290

145

325

437

155

58

7

155

123

104

15

14

6

M14

140

12

19

58

18.7

20.0

16.7

18.0

80

310

155

350

466

155

58

7

170

138

118

15

14

8

M14

160

14

23

58

23.7

25.0

22.7

24.0

100

350

175

375

500

155

62

8

190

158

138

15

14

8

M14

180

14

30

58

31.8

33.0

27.8

29.0

125

400

200

400

540

155

68

9

215

183

164

15

14

10

M14

200

17

36

58

37.8

39.0

33.8

35.0

150

480

225

430

580

155

75

10

240

208

190

15

14

12

M14

225

19

45

58

47.8

49.0

38.8

40.0

Chart 2 Fundamental dimensions of type ASS/AQS/BSS/BQS:

DN

L

H

L1

L2

Thickness

Flange

Bont

Hand whee

Lift
Range

Cylin der
Volume

Weight(kg)

(mm)

ASS
AOS

BSS
BOS

ASS

AQS

BSS

BQS¡¡

6

D

Di

D2

do

b

n

Th

Do

S

m

V(cm3)

ASS

AOS

BSS

BOS

20

150

95

240

320

143

44

6

90

65

50

11

14

4

M10

80

8

7

27

6.8

7.6

7.2

8.0

25

160

100

242

325

143

44

6

100

75

60

11

14

4

M10

80

8

9

27

7.6

8.4

8.0

8.8

32

180

105

245

330

143

44

6

120

90

70

14

16

4

M12

100

9

9

27

9.2

10.0

9.0

9.8

40

200

115

274

365

143

48

6

130

100

80

14

16

4

M12

120

11

12

27

12.2

13.0

11.8

12.6

50

230

125

283

381

143

49

7

140

110

90

14

16

4

M12

140

12

15

27

14.9

15.7

15.9

16.7

65

290

145

325

437

155

58

7

160

130

110

14

16

4

M12

140

12

19

58

21.5

22.7

19.5

20.7

80

310

155

350

466

155

58

7

190

150

128

18

18

4

M16

160

14

23

58

25.8

27.0

24.8

26.0

100

350

175

375

500

155

62

8

210

170

148

18

18

4

M16

180

14

30

58

38.8

40.0

34.8

36.0

125

400

200

400

540

155

68

9

240

200

178

18

20

8

M16

200

17

36

58

46.3

47.5

42.3

43.5

150

480

225

430

580

155

75

10

265

225

202

18

20

8

M16

225

19

45

58

59.8

61.0

50.8

52.0

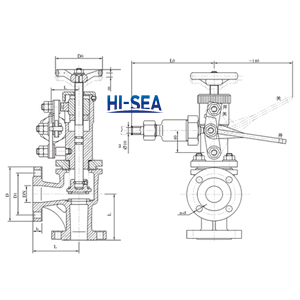

10.Drawing of Marine Cast Steel Quick Closing Globe Valve GB/T5744-1993:

Marine Cast Steel Quick Closing Globe Valve GB/T5744-1993

11.Certificate available:

Marine Cast Steel Quick Closing Globe Valve GB/T5744-1993
