Marine Cast Iron Gate valve GB/T465-1995

Marine Cast Iron Gate valve GB/T465-1995:

1.Design standard:CBT465-1995.

2.End standard:GB/T2501&GB/T569.

3.End type:Flange.

4.PN:0.25/0.4/0.6Mpa.

5.DN:50mm-500mm.

6.Main material:

  • Body/Bonnet:HT200;
  • Seat:SS410/BC6;
  • Stem:SS410/BS;
  • Disc:SS410/BC6.

7.Application:Sea water piping,fresh water piping and oil piping.

8.Function:Such valves are used for on-off duty.

9.Fundamental dimensions of Marine Cast Iron Gate valve GB/T465-1995:

Chart 1 Fundamental dimensions of type A:

PN

DN

Structure dimension

Flange

Bolt

Stem

Hand

wheel

Lift

range

m

Weight

kg

Mpa

mm

L/mm

H /mm

D/mm

D1/mm

D2/mm

b/mm

d0/mm

n

Th.

d/mm

/mm

D0/mm

0.6

50

190

340

135

103

84

16

15

6

M14

Tr20x8(P4)LH

14

180

60

20

65

200

372

155

123

104

15

15

6

M14

Tr20x8(P4)LH

14

180

75

24

80

220

430

170

138

118

15

15

8

M14

Tr24x10(P5)LH

17

200

92

33

100

220

460

190

158

138

15

15

8

M14

Tr24x10(P5)LH

17

200

112

40

125

242

528

215

183

164

15

15

10

M14

Tr26x10(P5)LH

19

225

138

61

150

248

566

240

208

190

16

15

12

M14

Tr26x10(P5)LH

19

225

165

70

0.4

175

268

630

270

238

221

16

15

12

M14

Tr28x10(P5)LH

22

250

190

85

200

278

685

295

264

247

16

15

12

M14

Tr28x10(P5)LH

22

250

215

100

250

310

755

365

327

306

18

17

14

M16

Tr30x10(P5)LH

24

280

265

153

300

345

835

430

385

360

19

21

14

M20

Tr30x10(P5)LH

24

280

315

199

Chart 2 Fundamental dimensions of type AS:

PN

Mpa

DN

mm

Structure

dimension

Flange

Bolt

Stem

Hand

wheel

Lift

range

m

Weight

kg

L/mm

H/mm

D/mm

D1/mm

D2/mm

b/mm

d0/mm

n

Th.

d/mm

/mm

D0 /mm

0.6

50

178

340

140

110

90

16

14

4

M12

Tr20x8(P4)LH

14

180

60

20.3

65

190

372

160

130

110

16

14

4

M12

Tr20x8(P4)LH

14

180

75

24.5

80

203

430

190

150

128

18

18

4

M16

Tr24x10(P5)LH

17

200

92

33.8

100

229

460

210

170

148

18

18

4

M16

Tr24x10(P5)LH

17

200

112

41.2

125

254

528

240

200

178

20

18

8

M16

Tr26x10(P5)LH

19

225

138

62.1

150

267

566

265

225

202

20

18

8

M16

Tr26x10(P5)LH

19

225

165

71.6

0.4

175

292

630

295

255

232

22

18

8

M16

Tr28x10(P5)LH

22

250

190

86.4

200

292

685

320

280

258

22

18

8

M16

Tr28x10(P5)LH

22

250

215

101.8

250

330

755

375

335

312

24

18

12

M16

Tr30x12(P6)LH

24

280

265

155.1

300

356

835

440

395

365

24

22

12

M20

Tr30x12(P6)LH

24

280

315

201.2

0.25

350

381

1050

490

445

415

26

22

12

M20

Tr36x12(P6)LH

27

320

365

298.3

400

406

1145

540

495

465

28

22

16

M20

Tr36x12(P6)LH

27

360

418

372.1

450

432

1330

595

550

520

28

22

16

M20

Tr40x12(P6)LH

32

400

468

560.0

500

457

1420

645

600

570

30

22

20

M20

Tr40x12(P6)LH

32

450

518

627.4

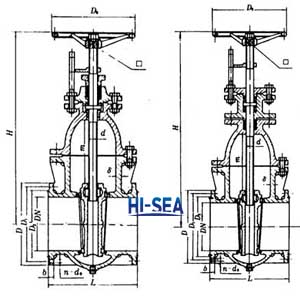

10.Drawing of Marine Cast Iron Gate valve GB/T465-1995:

Marine Cast Iron Gate valve GB/T465-1995
