Marine Bronze Hose Connection Valve CBM1109-82

Marine Bronze Hose Connection Valve CBM1109-82:

1.Design standard:CBM1109-82.

2.End standard:CBM1020.

3.End type:Flange.

4.PN:1.0Mpa.

5.DN:15mm&25mm.

6.Main material:

  • Body/Bonnet:BC6;
  • Seat:BC6;
  • Stem:BS;
  • Disc:BC6.

7.Application:Sea water,fresh water,air and steam piping.

8.Function:Such valves are used for on-off duty and hose connection.

9.Fundamental dimensions of Marine Bronze Hose Connection Valve CBM1109-82:

DN

Flange connection dimension

Height

Structure length

H

L

L1

L2

mm

D

C

n

d

Type A

Type B

Type A

Type B

15

95

70

4

15

101

91

73

55

70

60

25

125

90

4

19

126

111

83

65

85

70

10.Drawing of Marine Bronze Hose Connection Valve CBM1109-82:

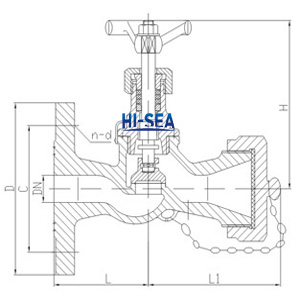

Type A:

Marine Bronze Hose Connection Valve CBM1109-82

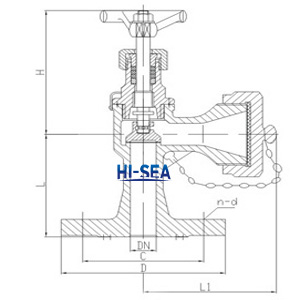

Type B:

Marine Bronze Hose Connection Valve CBM1109-82

11.Certificate available:

Marine Bronze Hose Connection Valve CBM1109-82
