Marine Air Vent Head CB/T3594-1994 type A/AS

Marine Air Vent Head CB/T3594-1994 type A/AS:

1.Design standard:CB/T3594-1994.

2.End standard:GB/T2501&GB/T569.

3.End type:Flange.

4.DN:50mm-250mm.

5.Main material:

  • Body/Bonnet:FC/FCD;
  • Disc:SS304.

6.Application:Bunker,water cabin air tube top.

7.Function:Such air vent heads are used for pressure balance.

8.Fundamental dimensions of Marine Air Vent Head CB/T3594-1994 type A/AS:

DN

mm

H

mm

H1

mm

Thickness

¦Ä/mm

Cover dimension

Flange connection dimension

Weight/kg

d/mm

h/mm

D/mm

D1/mm

b/mm

n

d0/mm

Cast iron

Cast steel

50

110

85

6

76

128

135

103

15

6

15

4.08

4.58

140

110

16

4

14

4.17

4.69

65

120

90

80

150

155

123

14

6

15

5.63

6.53

160

130

16

4

14

5.73

6.64

80

140

100

90

180

170

138

14

8

15

7.24

8.24

190

150

18

4

18

7.27

8.70

100

160

120

7

105

200

190

158

14

8

15

11.91

13.71

210

170

18

4

18

12.50

14.30

150

175

130

8

120

250

240

208

14

12

15

20.40

23.40

265

225

20

8

18

22.40

25.40

200

190

150

6

130

300

295

264

15

12

15

26.44

28.22

320

280

22

8

18

26.93

28.35

250

220

180

8

140

350

365

327

16

14

17

31.71

35.21

375

335

24

12

18

36.00

39.50

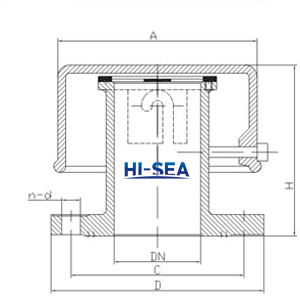

9.Drawing of Marine Air Vent Head CB/T3594-1994 type A/AS:
