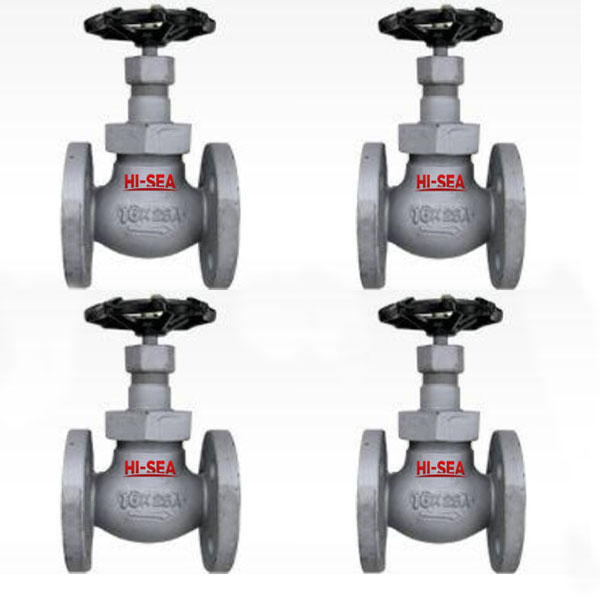

Marine Cast Ductile Iron Globe valve JIS F7323(C) 16k

[Search Related Products]

F7323

Marine Cast Ductile Iron Globe valve JIS F7323(C) 16k:

1.Test standard:JISF7400.

2.End standard:jisb2220.

3.End type:Flange.

4.PN:16k.

5.DN:15mm-40mm.

6.Main material:

  • Body/Bonnet:FCD450;
  • Seat:SS410/BC6;
  • Stem:SS410/H62;
  • Disc:SS410/BC6.

7.Application:Oil piping and water piping.

8.Function:Such valves are used for on-off duty and regulating the flow rate.

9.Specification of Marine Cast Ductile Iron Globe valve JIS F7323(C) 16k:

IMPA

DN/mm

Face to face/L(mm)

Flange diam./D(mm)

Flange pitch/C(mm)

Flange hoile/n*d(mm)

Weight/kg

750321

15

110

95

70

4x15

2.91

750322

20

120

100

75

4x15

3.85

750323

25

130

125

90

4x19

5.57

750324

32

160

135

100

4x15

7.40

750325

40

180

140

105

4x19

9.29

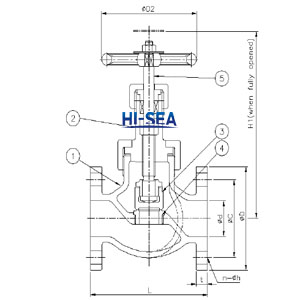

10.Drawing of Marine Cast Ductile Iron Globe valve JIS F7323(C) 16k:

7323cad

11.Certificate available:

Certificate
