Marine Cast Bronze SDNR Angle Valve JIS F7410 16K

[Search Related Products]

7410

Marine Cast Bronze Screw Down Check Angle Valve JIS F7410 16k:

1.Test standard:JISF7400.

2.End standard:JISB2220.

3.End type:Flange.

4.PN:16k.

5.DN:15mm-40mm.

6.Main material:

  • Body/Bonnet:BC6;
  • Seat:BC6;
  • Stem:H62;
  • Disc:BC6.


7.Application:Oil piping and water piping.

8.Function:Such valves are used for on-off duty and preventing refluence.

9.Specification of Marine Cast Bronze Screw Down Check Angle Valve JIS F7410 16k:

Code Size Face to Face (L) Flange diam. (D) Pitch (C) Hole (nxd) Weight
(mm) (mm) (mm) (mm) (mm) (kgs)
751081 15 70 95 70 4XD15 2.67
751082 20 75 100 75 4XD15 3.56
751083 25 85 125 90 4XD19 5.02
751084 32 95 135 100 4XD19 6.58
751085 40 100 140 105 4XD19 7.95

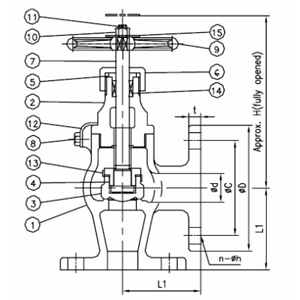

10.Drawing of Marine Cast Bronze Screw Down Check Angle Valve JIS F7410 16k:

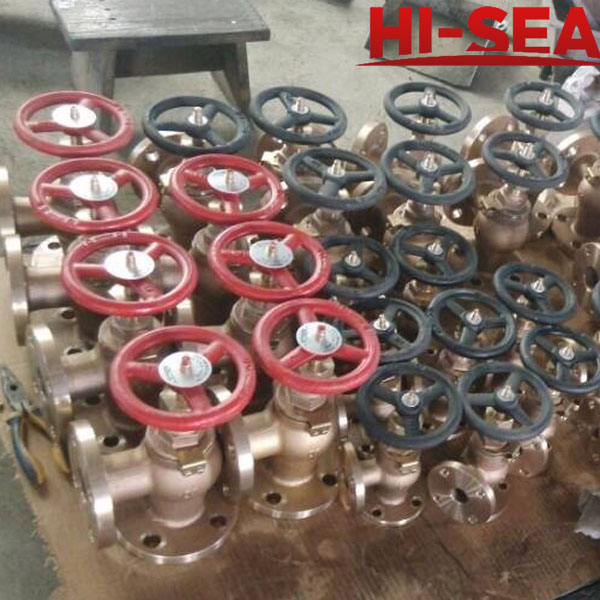

11.Marine Cast Bronze Screw Down Check Angle Valve JIS F7410 16k factory:

74100
