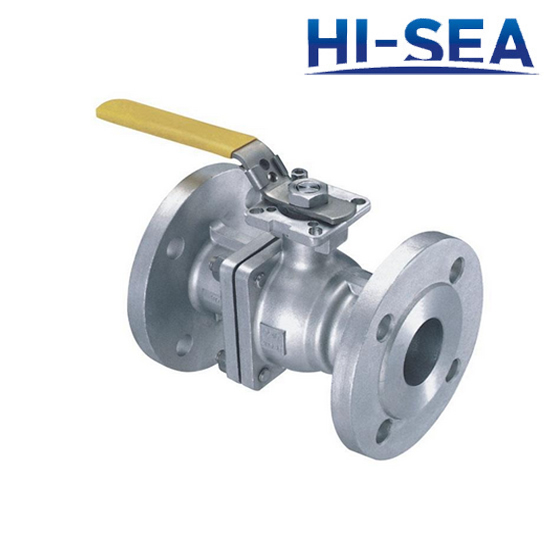

JIS 10K Ball Valve

[Search Related Products]

JIS 10K Ball Valve

JIS 10K Ball Valve

1. Flange Standard: JIS B2222-1977

2. Nominal Diameter: DN15-DN200

3. Nominal Presssure: 10K

4. Valve Body: WCB; CF8; ZG1Cr18Ni9Ti

5. Ball Body: 2Cr13; CF8; ZG1Cr18Ni9Ti; ZG1Cr18Ni12Mo2Ti; ZG00Cr17Ni14Mo2

6. Stem: 2Cr13; 304; 316; 316L

7. Seat: PTFE

8. Specification:

Nominal Diameter DN

L

W

H

D

C

t

n

h

15

108

100

62

95

70

12

4

15

20

117

120

68

100

75

14

4

15

25

127

160

75

125

90

14

4

19

32

140

180

85

135

100

16

4

19

40

165

200

95

140

105

16

4

19

50

178

250

110

155

120

16

4

19

65

190

300

130

175

140

18

4

19

80

203

400

155

185

150

18

8

19

100

229

500

180

210

175

18

8

19

125

356

600

250

250

210

20

8

23

150

394

800

275

280

240

22

8

23

200

457

1000

345

305

290

22

12

23

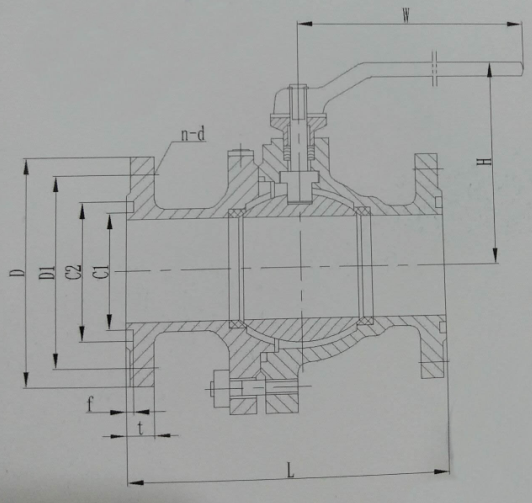

Drawing of JIS 10K Ball Valve:

JIS 10K Ball Valve

9. Available Certificate:

JIS 10K Ball Valve
