Marine Cast Steel Globe Valve JIS F7319 10K

[Search Related Products]

F7319

Marine Cast Steel Globe Valve JIS F7319 10K :

1.Test standard:JISF7400.

2.End standard:JISB2220.

3.End type:Flange.

4.PN:10k.

5.DN:50mm-300mm.

6.Main material:

  • Body/Bonnet:SC-ZG230-450;
  • Seat:SS410/BC6;
  • Stem:SS410/H62;
  • Disc:SS410/BC6.

7.Application:Oil piping,water piping and steam piping.

8.Function:Such valves are used for on-off duty and regulating the flow rate.

9.Specification of Marine Cast Steel Globe Valve JIS F7319 10K :

Size L Flange diam. (D) Pitch (C) Hole (nxd) t H Weight
(mm) (mm) (mm) (mm) (mm) (mm) (mm) (kgs)
50 220 155 120 4-19 16 270 17.9
65 270 175 140 4-19 18 300 26.0
80 300 185 150 8-19 18 310 29.8
100 350 210 175 8-19 18 355 44.7
125 420 250 210 8-23 20 415 70.3
150 490 280 240 8-23 22 470 96.4
200 570 330 290 12-23 22 565 159.0
250 740 400 355 12-25 24 645 257.0
300 840 445 400 16-25 24 735 370.0

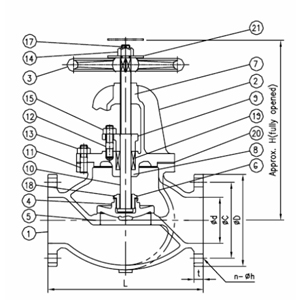

10.Drawing of Marine Cast Steel Globe Valve JIS F7319 10K :

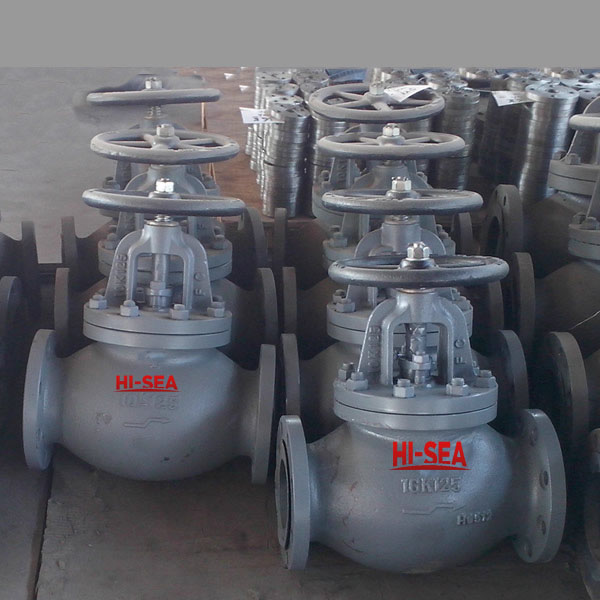

11.Marine Cast Steel Globe Valve JIS F7319 10K :
