Marine Bronze SDNR Angle Valve JIS F7352 5K

[Search Related Products]


7352

Marine Bronze Screw Down Check Angle Valve JIS F7352 5K :

1.Test standard:JISF7400.

2.End standard:JISB2220.

3.End type:Flange.

4.PN:5K.

5.DN:15mm-40mm.

6.Main material:

  • Body/Bonnet:BC6;
  • Seat:BC6;
  • Stem:H62;
  • Disc:BC6.

7.Application:Oil piping and water piping.

8.Function:Such valves are used for on-off duty and preventing refluence.

9.Specification of Marine Bronze Screw Down Check Angle Valve JIS F7352 5K :

Code Size Face to Face (L) Flange diam. (D) Pitch (C) Hole (nxd) Weight
(mm) (mm) (mm) (mm) (mm) (kgs)
751061 15 55 80 60 4XD12 1.92
751062 20 60 85 65 4XD12 2.64
751063 25 65 95 75 4XD15 3.30
751064 32 80 115 90 4XD15 4.63
751065 40 85 120 95 4XD15 5.81

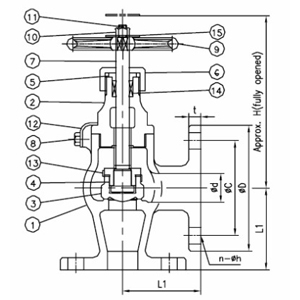

10.Drawing of Marine Bronze Screw Down Check Angle Valve JIS F7352 5K :
11.Certificate available:
Certificate01
