Marine Pressure Transmitter

[Search Related Products]

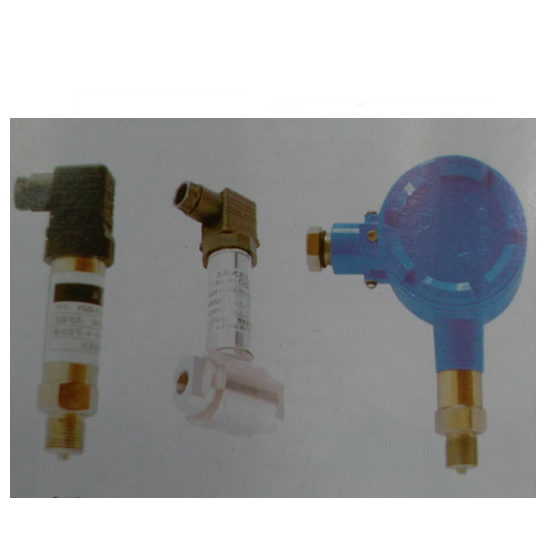

Marine Pressure Transmitter


Marine Pressure Transmitter

1. Application: Used for measure the pressure of liquid, gas in ship.

2. Working Temperature: -20--+80

3. Protection: IP 56

4. Over Load: 150% above max. Range

5. Power: 24V +10% DC

6. Output: DC 4-20 mA (two wires)


7. Measuring Accuracy: 0.5% FS

Marine Pressure Transmitter


Measure Range

Model

Measuring Range (MPA)

Gauge Type

-0.1~0.1, -0.1~0, 0~0.10, 0~0.16, 0~0.25, 0~0.40, 0~0.60, 0~1.0, 0~1.6, 0~2.5, 0~4.0, 0~6.0, 0~10, 0~16, 0~25, 0~40, 0~60

Abs. Type

0~0.10, 0~0.16, 0~0.25, 0~0.40, 0~0.60, 0~1.0, 0~1.6, 0~2.5, 0~4.0, 0~6.0, 0~10, 0~16, 0~25, 0~40, 0~60

Seal Type

0~0.01, 0~0.02, 0~0.05, 0~0.10, 0~0.20, 0~0.50, 0~1.0, 0~2.0

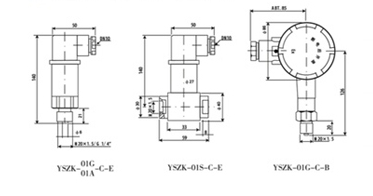

8.The Outline Dimension of Marine Pressure Transmitter:


Marine Pressure Transmitter

9. Certificate Available:

Marine Pressure Transmitter
