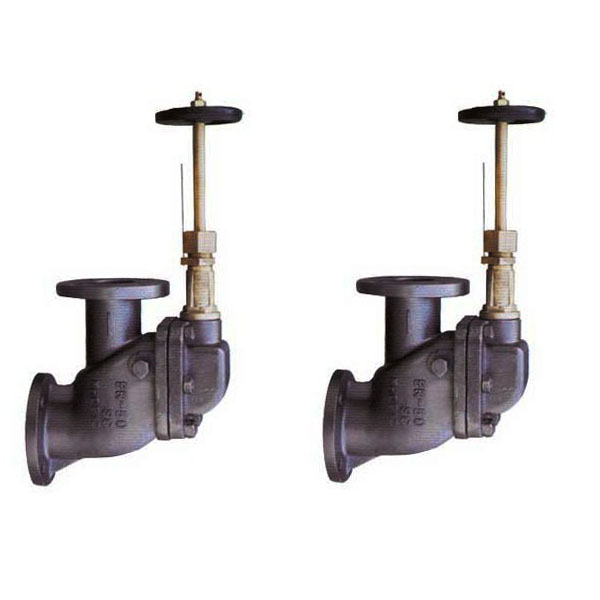

Marine Cast Steel Down Storm Valve JIS F3060R 5K

Size L1 Flange diam. (D) Pitch (C) Hole (nxd) t H Weight
(mm) (mm) (mm) (mm) (mm) (mm) (mm) (kgs)
50 170 130 105 4-15 14 131 13.0
65 190 155 130 4-15 14 141 19.0
80 220 180 145 4-19 14 155 23.8
100 250 200 165 8-19 16 171 29.6
125 270 235 200 8-19 16 195 50.0
150 340 265 230 8-19 18 212 67.0
Marine Cast Steel Down Storm Valve JIS F3060R 5K

Main materials:

(1). Body: cast steel SC49

(2). Disc: bronze BC6

(3). Seat: NBR

(4). Stem: stainless steel SUS403.
