Marine Cast Steel SDNR Angle Valve JIS F7472 10K
[Search Related Products]
Marine Cast Steel SDNR Angle Valve JIS F7472 10k:
1.Test standard:JISF7400.
2.End standard:JIsb2220.
3.End type:Flange.
4.PN:10k.
5.DN:50mm-300mm.
6.Main material:
-
Body/Bonnet:ZG230-450;
-
Seat:SS410/BC6;
-
Stem:SS410/H62;
-
Disc:SS410/BC6.
7.Application:Oil piping,water piping and steam piping.
8.Function:Such valve are used for on-off duty and regulating the flow rate.
9.Specification of Marine Cast Steel SDNR Angle Valve JIS F7472 10k:
| Size | L1 | Flange diam. (D) | Pitch (C) | Hole (nxd) | t | H | Weight |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kgs) |
| 50 | 120 | 155 | 120 | 4-19 | 16 | 240 | 16.3 |
| 65 | 130 | 175 | 140 | 4-19 | 18 | 260 | 23.1 |
| 80 | 140 | 185 | 150 | 8-19 | 18 | 265 | 25.3 |
| 100 | 160 | 210 | 175 | 8-19 | 18 | 300 | 37.0 |
| 125 | 180 | 250 | 210 | 8-23 | 20 | 350 | 56.6 |
| 150 | 205 | 280 | 240 | 8-23 | 22 | 400 | 77.1 |
| 200 | 230 | 330 | 290 | 12-23 | 22 | 480 | 116.0 |
| 250 | 290 | 400 | 355 | 12-25 | 24 | 535 | 188.0 |
| 300 | 320 | 445 | 400 | 16-25 | 24 | 610 | 256.0 |

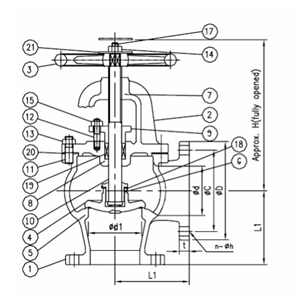

10.Drawing of Marine Cast Steel SDNR Angle Valve JIS F7472 10k:
11.Certificate available:
