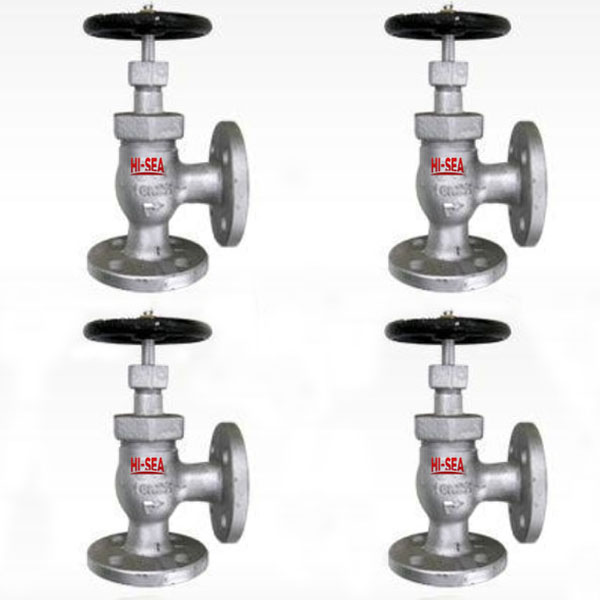

Marine Cast Ductile Iron angle valve JIS F7324(C) 16k

[Search Related Products]
F7324

Marine Cast Iron angle valve JIS F7324(C) 16k:

1.Test standard: JISF7400.

2.End standard: JISB2220.

3.End type:Flange.

4.Pressure: 16k.

5.DN:15mm-40mm.

6.Main material:

  • Body/Bonnet: FCD450;
  • Seat: SS410/BC6;
  • Stem: SS410/H62;
  • Disc: SS410/BC6.

7.Application:Oil piping and water piping.

8.Function:Such valves are used for on-off duty and regulating the flow rate.

9.Specification of Marine Cast Iron angle valve JIS F7324(C) 16k:

IMPA

DN/mm

Face to face/L(mm)

Flange diam/D(mm)

Flange pitch/C(mm)

Flange hole/n*d(mm)

Weight/kg

750331

15

70

95

70

4x¦µ15

2.73

750332

20

75

100

75

4x¦µ15

3.65

750333

25

85

125

90

4x¦µ15

5.16

750334

32

95

135

100

4x¦µ15

6.72

750335

40

100

140

105

4x¦µ19

8.13

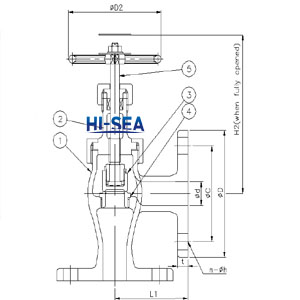

10.Drawing of Marine Cast Ductile Iron angle valve JIS F7324(C) 16k:

7324cadMarine Cast Ductile Iron angle valve JIS F7324(C) 16k

11.Certificate available:

Certificate
