Marine Inhalant Sea Water Filter CB/T497-94 Type BL/BLS/BR/BRS

Marine Inhalant Sea Water Filter CB/T497-94 Type BL/BLS/BR/BRS:

1.Design standard:CB/T497-94.

2.End standard:GB569/GB2501.

3.End type:Flange.

4.PN:0.1Mpa.

5.DN:40mm-350mm.

6.Main material:

  • Body/Bonnet:Carbon steel;
  • Filter screen:Carbon steel/stainless steel.

7.Application:Fresh water and sea water.

8.Fundamental dimensions of Marine Inhalant Sea Water Filter CB/T497-94 Type BL/BLS/BR/BRS:

Chart 1 Fundamental dimensions of type BL/BR:

DN

L

H

H1

D0

Ž─

D

D1

D2

b

d0

n

Th.

L1

L2

L3

L4

d1

Weight/kg

40

135

225

92

133

5

125

93

74

15

15

6

M14

_______________

12.9

50

135

225

92

133

5

135

103

84

15

15

6

M14

13.1

65

155

325

122

155

5

155

123

104

14

15

6

M14

17.2

80

175

360

152

180

6

170

138

118

14

15

8

M14

38.2

100

210

415

182

250

6

190

158

138

14

15

8

M14

36.5

125

210

445

182

257

6

215

183

164

14

15

10

M14

41.6

150

245

470

190

312

6

240

208

190

14

15

12

M14

60.2

200

270

550

240

362

8

295

264

247

15

15

12

M14

440

410

80

50

17

89.6

250

300

675

315

450

8

365

327

306

16

17

14

M16

520

490

80

50

17

137

300

330

770

340

500

8

430

386

360

19

21

14

M20

590

560

100

70

17

175

350

425

963

508

580

10

480

436

410

20

21

16

M20

680

640

120

80

19

359.4

Chart 2 Fundamental dimensions of type BLS/BRS:

DN

L

H

H1

D0

Ž─

D

D1

D2

b

d0

n

Th.

L1

L2

L3

L4

d1

Weight/kg

40

135

225

92

133

5

130

100

80

16

14

4

M12

_______________

13.0

50

135

225

92

133

5

140

110

90

16

14

4

M12

13.2

65

155

325

122

155

5

160

130

110

16

18

4

M12

17.4

80

175

360

152

180

6

190

150

128

18

18

4

M16

21.7

100

210

415

182

250

6

210

170

148

18

18

4

M16

38.4

125

210

445

182

257

6

240

200

178

20

18

8

M16

43.4

150

245

470

190

312

6

265

225

202

20

18

8

M16

62.1

200

270

550

240

362

8

320

280

258

22

18

8

M16

440

410

80

50

17

92.7

250

300

675

315

450

8

375

335

312

24

18

12

M16

520

490

80

50

17

140

300

330

770

340

500

8

440

395

365

24

22

12

M20

590

560

100

70

17

176

350

425

963

508

580

10

490

445

415

26

22

12

M20

680

640

120

80

19

366.4

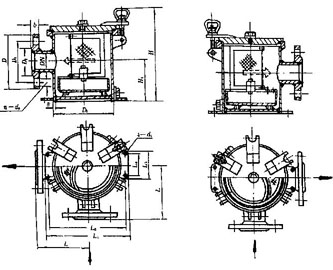

9.Drawing of Marine Inhalant Sea Water Filter CB/T497-94 Type BL/BLS/BR/BRSú╗

Marine Inhalant Sea Water Filter CB/T497-94 Type BL/BLS/BR/BRS

10.Certificate available:

Marine Inhalant Sea Water Filter CB/T497-94 Type BL/BLS/BR/BRS
