Marine Air Vent Head CB/T3594-1994 type B/BS

Marine Air Vent Head CB/T3594-1994 type B/BS:

1.Design standard:CB/T3594-1994.

2.End standard:GB/T2501&GB/T569.

3.End type:Flange.

4.DN:50mm-250mm.

5.Main material:

  • Body/Bonnet:FC/FCD;
  • Disc:SS304.

6.Application:Bunker,water cabin air tube top.

7.Function:Such air vent heads are used for pressure balance.

8.Fundamental dimensions of Marine Air Vent Head CB/T3594-1994 type B/BS:

DN

mm

H1

mm

D

mm

S

mm

Thickness

¦Ä/mm

Flange connection dimension

b1/mm

b/mm

Orientation tendons

Weight/kg

D2/mm

D3/mm

b2/mm

n

d0 /mm

L/mm

n2

Cast iron

Cast steel

50

120

140

70

7

135

103

15

6

15

6

3

78

4

5.20

5.70

140

110

16

4

14

5.82

5.99

65

150

175

80

8

155

123

14

6

15

88

7.29

8.20

160

130

16

4

14

7.47

8.47

80

170

195

100

170

138

14

8

15

108

8.20

9.50

190

150

18

4

18

9.66

9.96

100

195

235

125

190

158

14

8

15

133

16.10

16.20

210

170

18

4

18

16.69

16.79

150

230

280

175

11

240

208

14

12

15

5

183

18.40

18.40

265

225

20

8

18

20.40

21.40

200

270

320

220

295

264

15

12

15

6

228

22.10

23.80

320

280

22

8

18

23.18

24.58

250

310

370

270

12

365

327

16

14

17

278

28.70

29.20

375

335

24

12

18

32.29

35.79

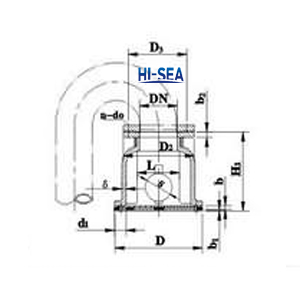

9.Drawing of Marine Air Vent Head CB/T3594-1994 type B/BS:

Marine Air Vent Head CB/T3594-1994 type B/BS

10.Certificate available:

Marine Air Vent Head CB/T3594-1994 type B/BS
