JIS F7303 Globe Valve

[Search Related Products]

JIS F7303 Globe Valve

The flanges shall conform to nominal pressure 5K of JIS B2240

JIS F7303 5K for nominal dia 32 shall be mode Botled Bonnet type

3. Materials:

(1). Bode: Bronze;

(2). Bonnet: Bronze/Brass;

(3). Disc: Bronze/Brass;

(4). Valve Disc Nut: Brass;

(5). Packing Gland: Brass;

(6). Gland Nut: Brass;

(7). Stem: Brass;

(8). Set Screw: Brass;

(9). Hendweel: Cast Iron;

(10). Hexagon Nut: Brass;

(11). Split Pin: Brass;

(12). Lock Plate: Brass;

(13). Disc Lock Washer: Brass;

(14). Packing: Non Asbestos;

(15). Washer: Steel;

(16). Indicator Plate: Brass;

(17). Indicator Piece

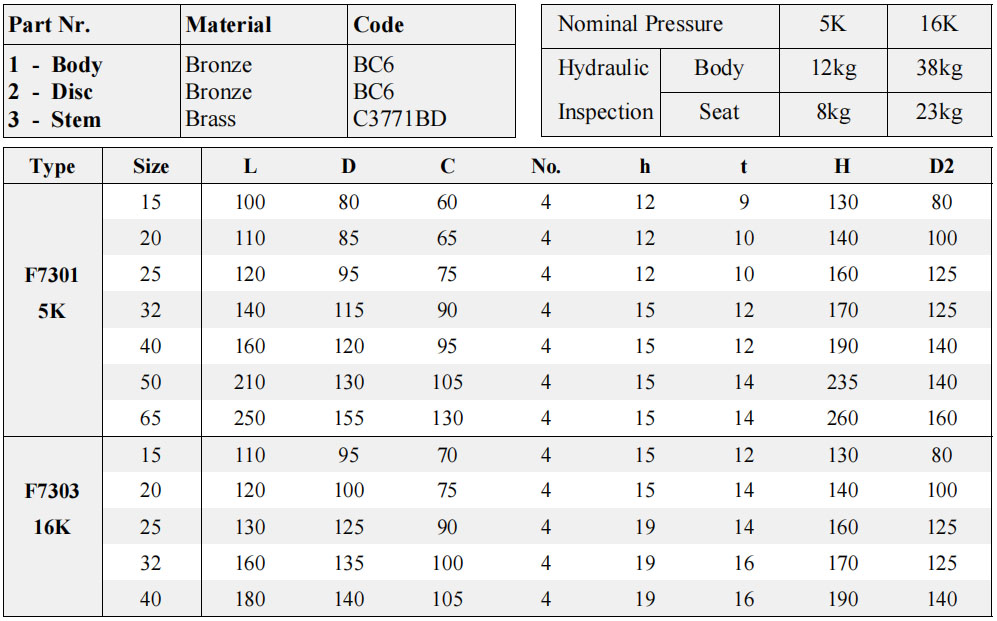

4. Dimensions

JIS F7303 Globe Valve

JIS F7303 Globe Valve
