Marine Air Reducing Valve Group

Marine Air Reducing Valve Group

1. Medium: Air

2. Feature: It can keep outlet pressure stabilizing in needed.

3. Inlet Pressure: 0.4~3.0 Mpa

4. Outlet Pressure: 0.2~1.2 Mpa

5. Nominal Diameter: 15-50 mm

6. Standard: GB, JIS, DIN, ANSI can be offered.

7. Type: Single Connection, Single Type with Side Pipe and Double Type Connection

Single Type with Side Pipe Specification:

Nominal Diameter

Structure Dimension

Flange Dimension

L

H

H1

D

C

g

b

n

d

15

750

250

125

95

65

47

14

4

14

20

800

250

135

105

75

58

16

4

14

25

845

250

145

115

85

68

16

4

14

32

920

260

155

140

100

78

16

4

18

40

1000

265

155

150

110

88

16

4

18

50

1085

290

170

165

125

102

18

4

18

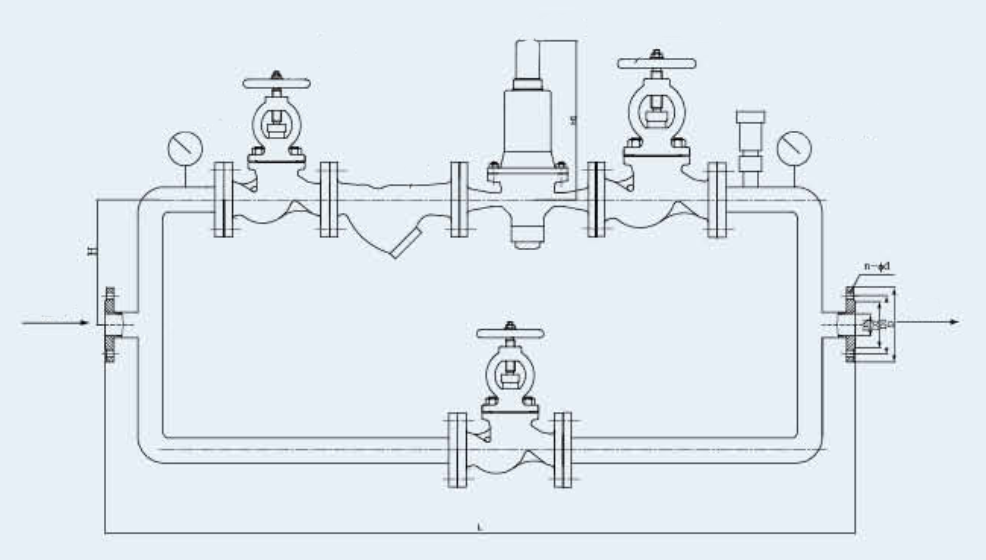

8. Drawing of Marine Air Reducing Valve Group:

Marine Air Reducing Valve Group

9. Certificate Available:

Marine Air Reducing Valve Group
