Marine Bronze Globe Valve JIS F7301

[Search Related Products]

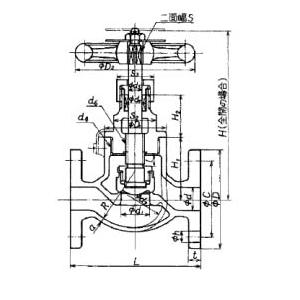

Marine Bronze Globe Valve JIS F7301 5K

Code Size Face to Face (L) Flange diam. (D) Pitch (C) Hole (nxd) Weight
(mm) (mm) (mm) (mm) (mm) (kgs)
750121 15 100 80 60 4XD12 2.02
750122 20 110 85 65 4XD12 2.86
750123 25 120 95 75 4XD12 3.54
750124 32 140 115 90 4XD15 5.00
750125 40 160 120 95 4XD15 6.48
750126 50 210 130 105 4XD15 11.70
750127 65 250 155 130 4XD15 17.00

Capability:

5kgf/cm3(0.49MPa) Medium Max Pressure kgf/cm3(Mpa)
7.7kgf/cm3(0.76MPa) Oil & flow water 5kgf/cm3(0.49MPa)
10.5kgf/CM3(1.046MPa) Lenitic water°‹ 120°ś 7kgf/cm3(0.69MPa)

Applicable scope:

The products are used for preventing refluence in fuel oil piping, lubrication oil piping and water piping at tempereature 120°ś or less. Dimensions of flange are according to JIS B2220 falange dimensions of steel pipe.
