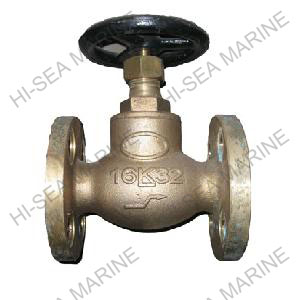

Marine Bronze SDNR Globe Valve JIS F7409 16K

[Search Related Products]


Marine Bronze SDNR Globe Valve F7409 16k

Marine Bronze SDNR Globe Valve JIS F7409 16K:

1.Test standard:JISF7400.

2.End standard:JISB2220.

3.End standard:Flange.

4.PN:16k.

5.DN:15mm-40mm.

6.Main material:

  • Body/Bonnet:BC6;
  • Seat:BC6;
  • Stem:H62;
  • Disc:BC6.

7.Application:Oil piping and water piping.

8.Function:Such valve are used for on-off duty and regulating the flow rate.

9.Specification of Marine Bronze SDNR Globe Valve JIS F7409 16k:


Code Size Face to Face (L) Flange diam. (D) Pitch (C) Hole (nxd) Weight
(mm) (mm) (mm) (mm) (mm) (kgs)
751071 15 110 95 70 4XD15 2.70
751072 20 120 100 75 4XD15 3.63
751073 25 130 125 90 4XD19 5.09
751074 32 160 135 100 4XD19 6.77
751075 40 180 140 105 4XD19 8.25

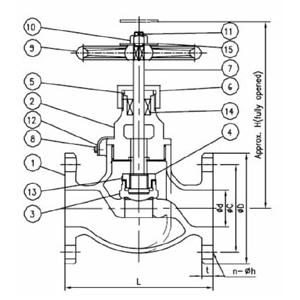

10.Drawing of Marine Bronze SDNR Globe Valve JIS F7409 16k:

11.Certificate available:

Certificate01
