Marine Bronze Swing Check Valve JIS F7371 5K (DN15-DN40)

Marine Bronze Swing Check Valve JIS F7371 5K (DN15-DN40)

1. Brief Introduction:

The check valve is good quality with test certificate. It is flange connection and widely used in marine field.

2. Standard:

Design Standard: JIS F7371-1996

Test Standard: JIS 7400-1996

Flange Size as per JIS B2220-5K

3. Material:

Body, Bonnet: Bronze (ZQSn10-21)

Disc, Seat: Bronze (QAL9-21)

Packing: PTFE (SFT-2)

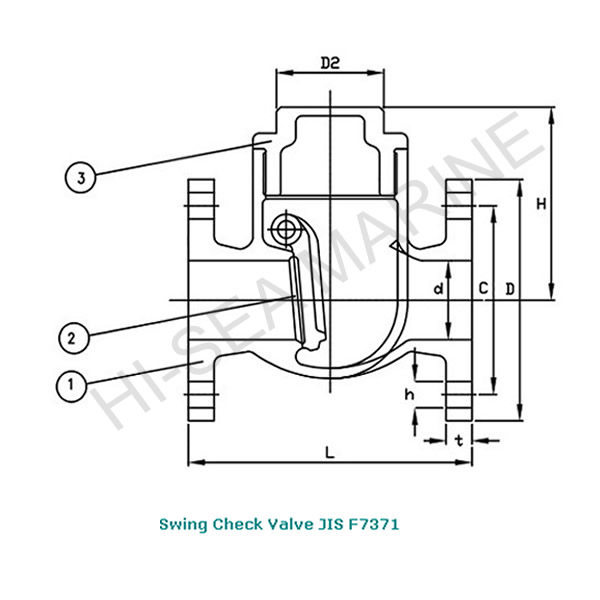

4. Main Data for Marine Bronze Swing Check Valve JIS F7371 5K (mm):

Code DN L D C Numberof Bolt h t H D2 Weight KG
751401 25 110 95 75 4 12 10 69 41 2.24
751402 32 130 115 90 4 15 12 79 41 3.07
751403 40 140 120 95 4 15 12 93 46 4.34
Marine Bronze Swing Check Valve JIS F7371 5K (DN15-DN40)

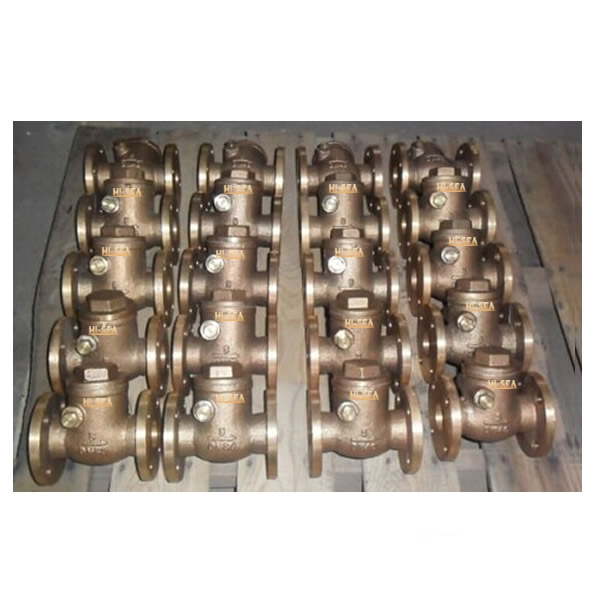

5. Marine Bronze Swing Check Valve JIS F7371 5K (DN15-DN40) in Warehouse:

Marine Bronze Swing Check Valve JIS F7371 5K (DN15-DN40)
