Marine Cast Bronze Hose Angle Globe Valve JIS F7334B 5K/10K

[Search Related Products]

7334B

Marine Cast Bronze Hose Angle Globe Valve JIS F7334B 5K/10K £º

1.Test standard:JISF7400.

2.End standard:JISB2220.

3.End type:Flange.

4.PN:5k/10k.

5.DN:

  • 5k:15mm-50mm;
  • 10k:15mm-65mm.

6.Main material:

  • Body/Bonnet:BC6;
  • Seat:BC6;
  • Stem:BRASS;
  • Disc:BC6.

7.Application:Water piping.

8.Function:Such valves are used for fire control.

9.Specification of Marine Cast Bronze Hose Angle Globe Valve JIS F7334B 5K/10K £º

Marine Cast Bronze Hose Angle Globe Valve JIS F7334B 5K:

DN/mm

Flange diam./D(mm)

Flange pitch/C(mm)

Flange hole/n*d(mm)

Weight/kg

15

80

60

4x¦µ12

2.41

25

95

75

4x¦µ12

3.44

40

120

95

4x¦µ15

5.91

50

130

105

4x¦µ15

11.00

Marine Cast Bronze Hose Angle Globe Valve JIS F7334B 10K £º

DN/mm

Flange diam./D(mm)

Flange pitch/(mm)

Flange hole/n*d(mm)

weight/kg

15

95

70

4x¦µ15

2.72

25

125

90

4x¦µ19

4.04

40

140

105

4x¦µ19

8.09

50

155

120

4x¦µ19

14.30

65

175

140

4x¦µ19

23.00

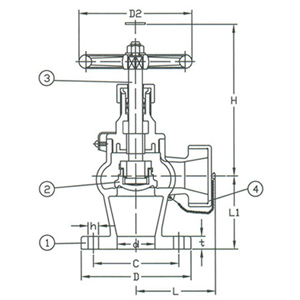

10.Drawing of Marine Cast Bronze Hose Angle Globe Valve JIS F7334B 5K/10K £º


11.Certificate available:

Certificate01
