Marine Cast Iron SDNR Angle Valve JIS F7354 5K

[Search Related Products]

7354

Marine Cast Iron Screw Down Check Angle Valve JIS F7354 5K :

1.Test standard:JISF7400.

2.End standard:JISB2220.

3.End type:Flange.

4.PN:5k.

5.DN:50mm-400mm.

6.Main material:

  • Body/Bonnet:HT200;
  • Seat:SS410/BC6;
  • Stem:SS410/H62;
  • Disc:SS410/BC6.

7.Application:Oil piping,water piping and steam piping.

8.Function:Such valves are used for on-off duty and regulating the flow rate.

9.Specification of Marine Cast Iron Screw Down Check Angle Valve JIS F7354 5K :

Code Size L1 Flange diam. (D) Pitch (C) Hole (nxd) t H Weight
(mm) (mm) (mm) (mm) (mm) (mm) (mm) (kgs)
751116 50 100 130 105 4x¦µ15 16 240 12.90
751117 65 115 155 130 4x¦µ15 18 255 18.20
751118 80 130 180 145 4x¦µ19 18 265 23.30
751119 100 150 200 165 8x¦µ19 20 310 33.50
751120 125 170 235 200 8x¦µ19 20 330 46.50
751121 150 190 265 230 8x¦µ19 22 380 64.00
751122 200 220 320 280 8x¦µ23 24 450 104.00
751123 250 275 385 345 12x¦µ23 26 540 175.00
751124 300 310 430 390 12x¦µ23 28 610 243.00
751125 350 360 480 435 12x¦µ25 30 690 336.00
751126 400 395 540 495 16x¦µ25 30 770 455.00

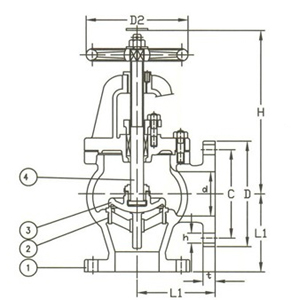

10.Drawing of Marine Cast Iron Screw Down Check Angle Valve JIS F7354 5K :

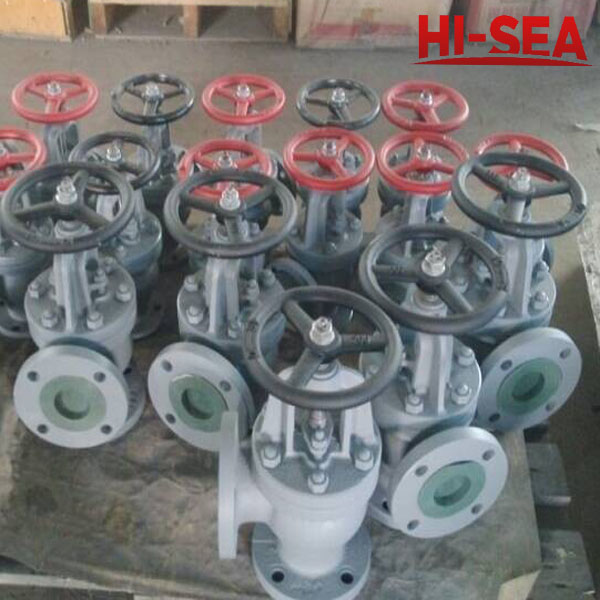

11.Marine Cast Iron Screw Down Check Angle Valve JIS F7354 5K factory:

9
