Marine Cast Iron Straight Globe Valve JIS F7305 5k

[Search Related Products]

Straight Globe Valve F7305 5k

Marine Cast Iron Straight Globe Valve JIS F7305 5k:

1.Test standard:JISF7400;

2.End standard:JISB2220;

3.End type:Flange.

4.PN:5k.

5.DN:50mm-400mm.

6.Main material:

  • Body/Bonnet:FC-HT200;
  • Seat:SS410/BC6;
  • Stem:SS410/H62;
  • Disc:SS410/BC6.

7.Application:Oil piping,water piping and steam piping.

8.Function:Such valves are used for on-off duty and regulating the flow rate.

9.Specification of Marine Cast Iron Straight Globe Valve JIS F7305 5k:

IMPA Tyoe DN Face to face/L(mm) Flange diam./(mm) Flange pitch/C(mm) Flange pitch/n*d(mm) Weight/kg
750201

F7305

5k

Globe

50 210 130 105 4x¦µ15 14.70
750202 65 250 155 130 4x¦µ15 21.30
750203 80 280 180 145 4x¦µ19 27.70
750204 100 340 200 165 8x¦µ19 40.80
750205 125 410 235 200 8x¦µ19 57.60
750206 150 480 265 230 8x¦µ19 80.30
750207 200 570 320 280 8x¦µ23 139.00
750208 250 740 385 345 12x¦µ23 246.00
750209 300 840 430 390 12x¦µ23 377.00
750210 350 940 480 435 12x¦µ25 462.00
750211 400 1050 540 490 16x¦µ25 647.00

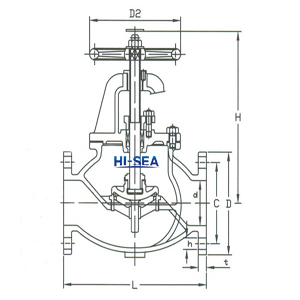

10.Drawing of Marine Cast Iron Straight Globe Valve JIS F7305 5k:

F7305

11.Certificate available:

Certificate
