Magnetic Type Float Level Switch

Magnetic Type Float Level Switch

1. Installation: Horizontal Mounting (Side Mounting)

2. Max. Working Pressure: 10 kg/cm2

3. Max. Working Temperature: 150 íŠ

4. Protection: IP 56, Weather Proof


5. Size: (Unit mm)

Size O.D P.C.D No. of Hole Hole Size
65 155 130 4 15

6. Parts of Name:

No. Description
1 Body
2 Cover
3 Flange
4 Float
5 Magnet
6 Swith Box
7 Name Plate
8 Cable Gland
9 Earth Terminal

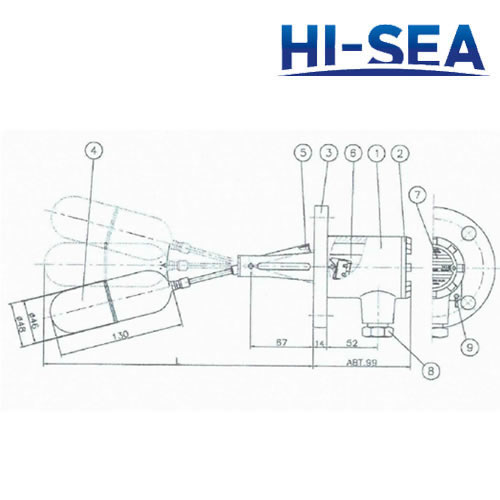

7. Drawing:

Magnetic Type Float Level Switch
