Marine Bronze Agglutinate Pipe End Screw Thread Stop Valve CB575-1977

Marine Bronze Agglutinate Pipe End Screw Thread Stop Valve CB575-1977:

1.Design standard:CB/T575-1977.

2.End standard:CB56-80.

3.End type:Thread.

4.PN:0.6Mpa.

5.DN:25MM-65MM.

6.Main material:

  • Body/Bonnet:BC6;
  • Seat:BC6;
  • Stem:BRASS;
  • Disc:BC6.

7.Application:Sea water piping,fresh water piping and oil piping.

8.Function:Such valves are used for on-off duty.

9.Fundamental dimensions of Marine Bronze Agglutinate Pipe End Screw Thread Stop Valve CB575-1977:

DN

mm

Flange Connection dimension

D/mm

D1/mm

D2/mm

M/mm

L/mm

H1/mm

H2/mm

H/mm

25

23

32

29

M39x2

70

36

15

147

32

30

40

36

M48x2

80

38

16

158

40

40

50

46

M52x2

90

44.5

16

192

50

49

60

56

M60x2

100

53

18

194

65

63

75

71

M80x2

130

64

25

231

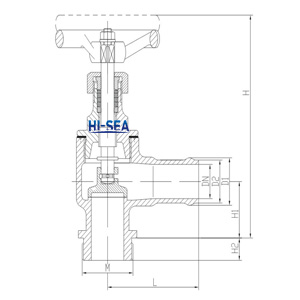

10.Drawing of Marine Bronze Agglutinate Pipe End Screw Thread Stop Valve CB575-1977:

Marine Bronze Agglutinate Pipe End Screw Thread Stop Valve CB575-1977

11.Certificate available:

Marine Bronze Agglutinate Pipe End Screw Thread Stop Valve CB575-1977
