DIN 2501 SDNR Valve

DIN 2501 SDNR Valve


1. SDNR Valve is Screw Down Non-Return Valve.

2. Application: Shipbuilding.

3. Body Material: Cast Iron

4. Disc Material: Stainless Steel

5. Stem Material: Stainless Steel

6. Seat Material: Stainless Steel

7. Nominal Pressure: PN10/PN16

8. Specification:

Size

L

D

C

N0. X h

15

130

95

65

4 x 14

20

150

105

75

4 x 14

25

160

115

85

4 x 14

32

180

140

100

4 x 18

40

200

150

110

4 x 18

50

230

165

125

4 x 18

65

290

185

145

4 x 18

80

310

200

160

8 x 18

100

350

220

180

8 x 18

125

400

250

210

8 x 18

150

480

285

240

8 x 22

175

550

315

270

8 x 22

200

600

340

295

12 x 22

250

730

405

355

12 x 25

300

850

460

410

12 x 25

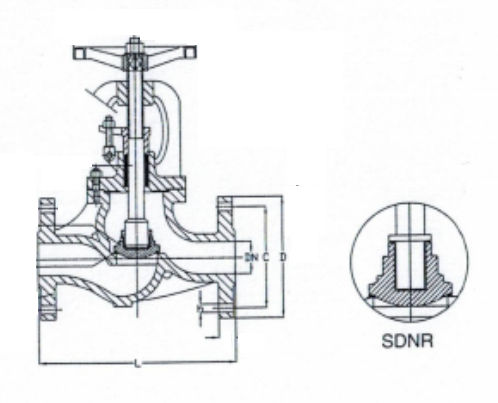

9. DIN 2501 SDNR Valve Drawing:

DIN 2501 SDNR Valve


10. Available Certificate:

DIN 2501 SDNR Valve
