Marine Flanged Sea water Stop Valve CB/T3196-1995

Marine Flanged Sea water Stop Valve CB/T3196-1995:

1.Design standard:CB/T3196-1995.

2.End standard:GB/T2501&GB/T569.

3.End type:Flange.

4.PN:0.6/1.0/1.6Mpa.

5.DN:40mm-250mm.

6.Main material:

  • Body/Bonnet:ZG230-450;
  • Seat:SS410/BC;
  • Stem:SS410/BS;
  • Disc:SS410/BC.

7.Application:Sea water piping and fresh water piping.

8.Function:Such valves are used for on-off duty and regulating the flow rate.

9.Fundamental dimension of Marine Flanged Sea water Stop Valve CB/T3196-1995:

Chart 1 Fundamental dimensions of type A&B:

PN

DN

Structure dimension

Flange connection dimension

Bolt

Hand

wheel

Lift

range

Weight

A

B

kg

Mpa

mm

H

L

H

L

L1

D

D1

D2

d0

b

n

Th.

D0

¿Ú

m

A

B

1.6

40

260

200

235

90

90

125

93

74

15

13

6

M14

120

11

12

9

8

50

288

230

258

95

95

135

103

84

6

140

12

15

11

10

65

335

290

301

115

115

170

132

110

17

15

8

M16

160

14

19

19

17

80

366

310

325

125

125

185

147

126

16

8

200

17

23

25

22

100

427

350

378

150

135

205

167

146

10

250

22

28

36

32

125

465

400

405

175

155

225

187

168

15

12

250

22

35

81

56

150

524

480

452

180

160

255

217

196

12

280

24

42

81

73

1.0

65

310

290

277

115

115

155

123

104

15

14

6

M14

140

12

19

17

16

80

345

310

304

125

125

170

138

118

8

160

14

23

20

19

100

374

350

325

150

135

190

158

138

8

180

14

28

29

25

125

426

400

366

175

155

215

183

164

10

200

17

35

39

35

150

487

480

415

180

160

240

208

190

12

200

17

42

52

43

0.6

200

630

600

524

275

225

295

264

247

15

12

360

27

68

85

70

250

743

730

612

325

275

365

327

306

17

16

14

M16

450

32

80

134

114

Chart 2 Fundamental dimensions of type AS&BS

PN

DN

Structure dimension

Flange connection dimension

BOlt

Hand wheel

Lift

range

Weight

AS

BS

kg

Mpa

mm

H

L

H

L

L1

D

D1

D2

d0

b

n

Th.

D0

¿Ú

m

AS

BS

1.6

40

260

200

235

115

115

150

110

88

18

18

4

M16

120

11

12

10

9

50

288

230

258

125

125

165

125

102

20

140

12

15

12

10

65

335

290

301

145

145

185

145

122

160

14

19

20

18

80

366

310

325

155

155

200

160

133

8

200

17

23

26

21

100

427

350

378

175

175

220

180

158

22

250

22

28

37

33

125

465

400

405

200

200

250

210

184

250

22

35

62

57

150

524

480

452

225

225

285

240

212

22

24

M20

280

24

42

90

87

1.0

65

310

290

277

145

145

185

145

122

18

20

4

M16

140

12

19

20

18

80

345

310

304

155

155

200

160

133

8

160

14

23

26

21

100

374

350

325

175

175

220

180

158

22

180

14

28

37

33

125

426

400

366

200

200

250

210

184

200

17

35

62

57

150

487

480

415

225

225

285

240

212

22

24

M20

200

17

42

90

87

0.6

200

630

600

524

275

275

320

280

258

18

22

M16

360

27

68

100

95

250

743

730

612

325

325

375

335

312

24

12

450

32

80

140

130

10.Drawing of Marine Flanged Sea water Stop Valve CB/T3196-1995:

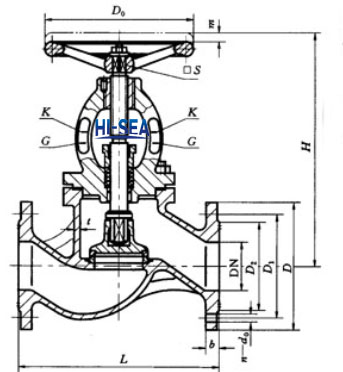

Type A/AS:

Marine Flanged Sea water Stop Valve CB/T3196-1995

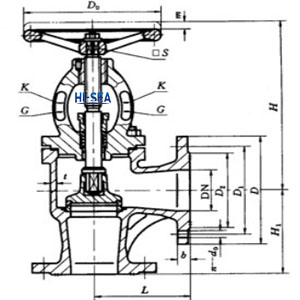

Type B/BS:

Marine Flanged Sea water Stop Valve CB/T3196-1995

11.Certificate available:

Marine Flanged Sea water Stop Valve CB/T3196-1995
